Home / Chemical Hose Assembly, 2" ID x 15 ft.

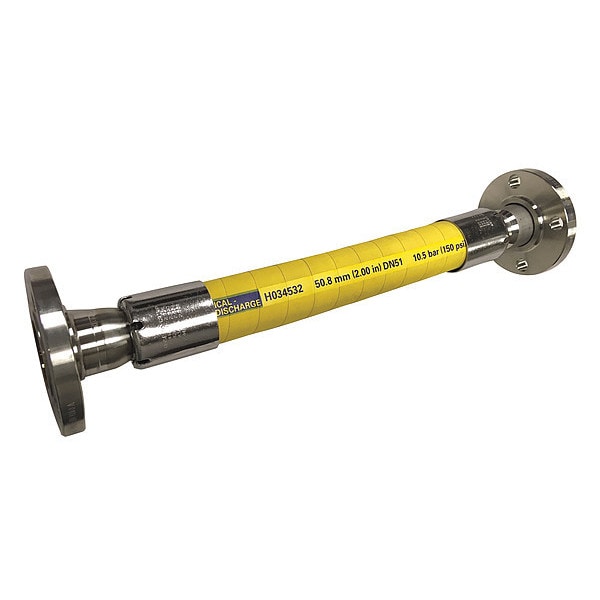

Chemical Hose Assembly, 2" ID x 15 ft.

SKU
Brand Boston
Categories
Description Chemical Hose Assembly, Hose Inside Dia. 2 in, Hose Outside Dia. 2 7/8 in, Hose Length 15 ft, Hose Tube Material EPDM, Hose Cover Material EPDM, Hose Reinforcement Type Helix, Hose Reinforcement Material Not Reinforced, Hose Color Yellow, Burst Pressure 600 psi, Max. Working Pressure @ 70 F 150 psi, Safety Factor 4:1, Temp. Range -45 Degrees to 180 Degrees F, Bend Radius 5 in, Hose Configuration Coupled Assembly, Hose Fitting A Size 2 in, Hose Fitting B Size 2 in
graingerSKU: , mscSKU: , zoro_no: G5059179, mongo_id: 65bbe8ab22d7a989a990a297

Web Price

$1,428.74 / each

Qty

Product Details

Bend Radius 5 in

Burst Pressure 600 psi

Compatible Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Air, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Carbon Dioxide, Chromic Acid 10%, Chromic Acid 5%, Citric Acid 50%, Cyclohexane, Ethyl Acetate, Ethylene Glycol, Fertilizers, Formaldehyde, Formaldehyde 40%, Formic Acid, Fresh Water, Glycerin, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Isopropyl (Isopropanol), Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Oxygen, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sulfuric Acid (to 10%)

Country of Origin (subject to change) United States

Fitting Material 316 Stainless Steel x 316 Stainless Steel

Fitting Size 2 in x 2 in

Fitting Type FIP x FIP

For Media Type Acetic Acid, Chromic Acid, Citric Acid, Formic Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sulfuric Acid, Ketones, Isopropanol, Methanol, Antifreeze, Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate, Cyclohexane, Ethyl Acetate, Formaldehyde, Ammonium Hydroxide, Potassium Hydroxide (50%), Water, Sodium Bisulfate, Sodium Bisulfite, Fertilizers, Air, Carbon Dioxide, Oxygen

Hose Color Yellow

Hose Configuration Coupled Assembly

Hose Cover Material EPDM

Hose Fitting A Material 316 Stainless Steel

Hose Fitting A Size 2 in

Hose Fitting A Type FIP

Hose Fitting B Material 316 Stainless Steel

Hose Fitting B Size 2 in

Hose Fitting B Type FIP

Hose Fittings 316 Stainless Steel 2 in FIP x 316 Stainless Steel 2 in FIP

Hose Inside Dia. 2 in

Hose Length 15 ft

Hose Outside Dia. 2 7/8 in

Hose Reinforcement Material Not Reinforced

Hose Tube Material EPDM

Max. Working Pressure @ 70 F 150 psi

Not Recommended Chemicals Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lubricated Air, Methyl Chloride, Mineral Oil , Motor Oil, Naphtha, Paint, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Solvents, Steam, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Vegetable Oil, Xylene

Package Quantity 1

Safety Factor 4:1

Static Control Wire No

Temp. Range -45 Degrees to 180 Degrees F
