Home / Gear, Spur, 10 Pitch

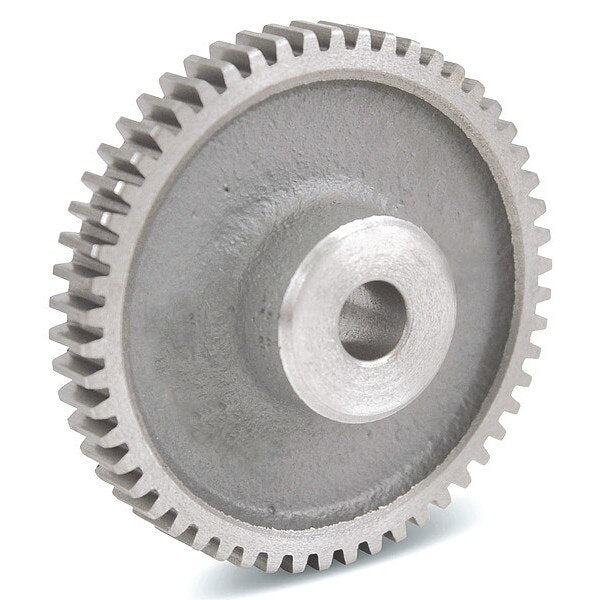

Gear, Spur, 10 Pitch

SKU
Brand Boston Gear
Categories

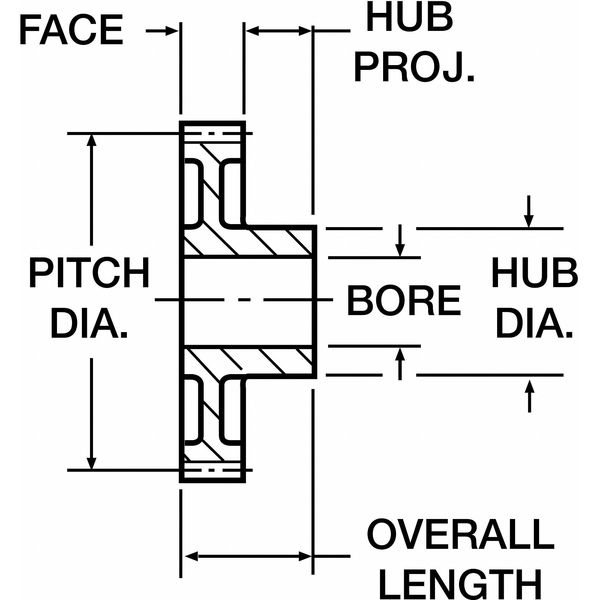

Description Spur Gear, Bore Diameter 7/8 in, Hub Diameter 2.12 in, Hub Projection 0.88 in, Face Width 1 in, Pitch Diameter 4 in, Material Cast Iron, Pressure Angle 14.5 Degrees , Compatible Gear Rack Grainger Part Number 1L903, 1L904, Compatible Gear Rack Manufacturer Part Number L516-6, L517-6, Diametral Pitch 10, Keyway No
graingerSKU: 1L980, mscSKU: , zoro_no: G2018012, mongo_id: 65bbe7ba9a749db822751845

Web Price

$158.74 / each

Qty

Product Details

Agency Compliance AGMA

Bore Dia. (In.) 0.875 in

Bore Diameter 7/8 in

Compatible Gear Rack Manufacturer Part Number L516-6, L517-6

Country of Origin (subject to change) United States

Diametral Pitch 10

Face Width 1 in

Face Width (In.) 1 in

For Use With 1L903, 1L904

Function Transmitting Motion and Power Between Parallel Shafts, Minimizes Backlash to Perform Smooth and Quiet Operation, Close Concentricity Between Bore, Pitch Diameter and Outside Diameter Facilitates Reboring Modifications

Gear Material & Finish Cast Iron

Hub Design Hub without Set Screw

Hub Dia. (In.) 2.12 in

Hub Diameter 2.12 in

Hub Projection 0.88 in

Hub Projection (In.) 0.88 in

Keyway N

Material Cast Iron

Number of Teeth 40

Outside Dia. (In.) 4.2 in

Outside Diameter 4.2 in

Overall Length 1.88 in
