Gear, Spur, 6 Pitch

SKU
Brand Boston Gear
Categories

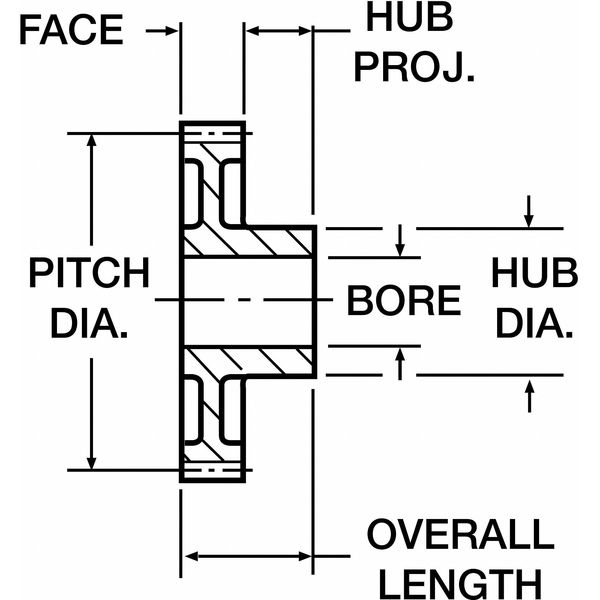

Description Spur Gear, Bore Diameter 1 in, Hub Diameter 2.46 in, Hub Projection 0.88 in, Face Width 1 1/2 in, Pitch Diameter 3 in, Material Steel, Pressure Angle 14.5 Degrees , Compatible Gear Rack Grainger Part Number 1L907, 1L908, Compatible Gear Rack Manufacturer Part Number L520-6, L521-6, Diametral Pitch 6, Keyway No
graingerSKU: 1L992, mscSKU: , zoro_no: G2795597, mongo_id: 65bbe7e49a749db82275fd8e

Web Price

$148.74 / each

Qty

Product Details

Agency Compliance AGMA

Bore Dia. (In.) 1 in

Bore Diameter 1 in

Compatible Gear Rack Manufacturer Part Number L520-6, L521-6

Country of Origin (subject to change) United States

Diametral Pitch 6

Face Width 1 1/2 in

Face Width (In.) 1.5 in

For Use With 1L907, 1L908

Function Transmitting Motion and Power Between Parallel Shafts, Minimizes Backlash to Perform Smooth and Quiet Operation, Close Concentricity Between Bore, Pitch Diameter and Outside Diameter Facilitates Reboring Modifications

Gear Material & Finish Steel

Hub Design Hub without Set Screw

Hub Dia. (In.) 2.46 in

Hub Diameter 2.46 in

Hub Projection 0.88 in

Hub Projection (In.) 0.88 in

Keyway N

Material Steel

Number of Teeth 18

Outside Dia. (In.) 3.333 in

Outside Diameter 3.333 in

Overall Length 2.38 in
