Home / Speed Reducer, C-Face, 140TC/180C, 10:1

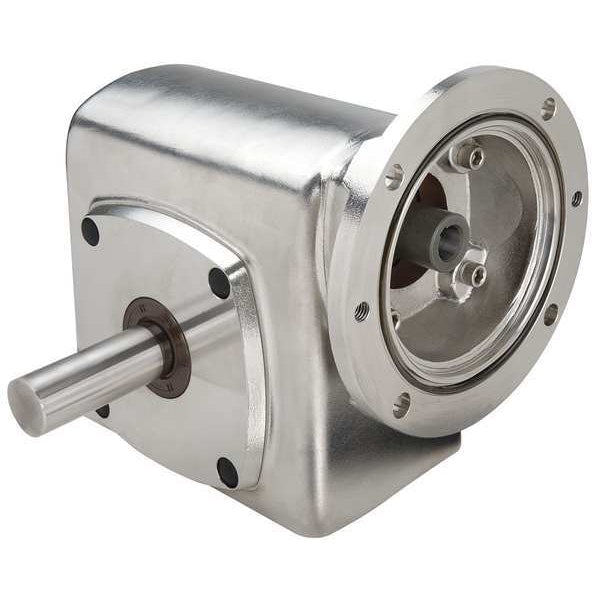

Speed Reducer, C-Face, 140TC/180C, 10:1

Speed Reducer, C-Face, 140TC/180C, 10:1

  • Boston Gear
  • Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 175 RPM, Motor Frame Designation 140TC/180C, Worm Center Distance 3.25 in, Base to Center 3.5 in, Gear Ratio 10:1, Rotation CW/CCW, Maximum Input Horsepower 3 hp, Maximum Output Torque 1629 in-lb, Overhung Load Capacity 1,300 ft-lb, Mounting Orientation Any Angle, Housing Material Stainless Steel, Bearing Type Tapered Roller

    graingerSKU: 3ZGH5, mscSKU: , zoro_no: G2508195, mongo_id: 65bbe6c63aaddbd5a9051990

Web Price
$5,638.74 / each
Qty

Product Details

Optional
3.5 in
Tapered Roller
Tapered Roller
1-3/4
United States
5.88 in
11.16 in
9.2 in
9.25 in
1 3/8 in
3.250 in
Washdown
High-Strength Steel Output Shaft, Internal Baffles Assure Positive, Leak-Free Venting, Large Oil Reservoir, Multi-Position Mounting Flexibility, Super-Finished Oil-Seal Diameters on Both Input and Output Shafts Extend Seal Life
316 Stainless Steel
140TC/180C
Hardened and Ground Steel
Type 316
10:1
Worm
Stainless Steel
Stainless Steel
316
C-Face
1750 RPM
7/8 in
Klubersynth UH1 6-460
3 hp
1,629 in-lb
3 hp
1,750 RPM
175 RPM
1629 in-lb
140TC/180C
Any Position
Any Angle
175 rpm
10:1
1
1 3/8 in
1 3/8 in
3 1/2 in
Round
3600 in.-lb.
632 in-lb
954 in-lb
1,629 in-lb
11.16
1,300 lb
1,300 ft-lb
1
Hardened Steel
SSF732-10-K-B7-GS
CW/CCW
Double Lip
Type 303
Right Angle
Single Output
Solid
C-Face
NSF
3.25 in
Bronze
