Home / Cordset, 12 Pin Pin, Receptacle, Female

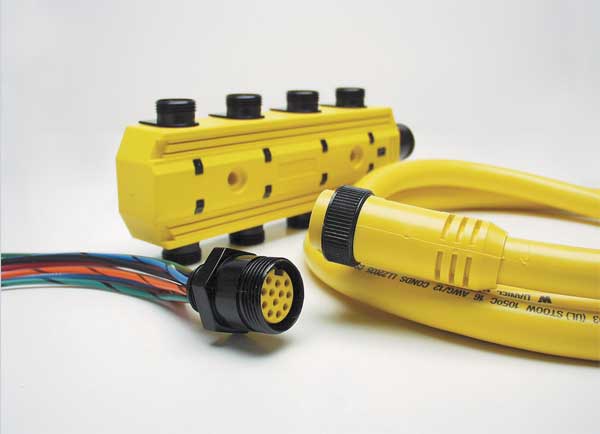

Cordset, 12 Pin Pin, Receptacle, Female

Cordset, 12 Pin Pin, Receptacle, Female

  • Brad Harrison
  • Cordset, End 1 Gender Female, End 1 Thread 1 1/8 In.-16, End 1 Number of Pins 12, End 1 Mounting Orientation Straight, End 1 Connection Type 1 1/8 in, End 2 Connection Type Bare Wire, Cable Length 1 ft, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 5 A, Wire Size 16 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, Standards CSA Certified, UL Listed, NEMA Rating 6P, End 1 Number of Keyways 1

    graingerSKU: , mscSKU: , zoro_no: G0803065, mongo_id: 65bbe6153aaddbd5a90066df

Web Price
$143.74 / each
Qty

Product Details

IP 67, IP68
NEMA 6P
Yellow
PVC
1 ft.
Orange, Blue, White-Black Trace, Red-Black Trace, Green-Black Trace, Orange-Black Trace, Blue-Black Trace, Black-White Trace, Green-Gnd, Red, White, Black
1-1/8 -16 UN-2A
1-1/8 in
1 1/8-16 Female Straight x Bare Wire
Single-Ended
Mexico
External Thread
LR6837
5.0A
1 1/8 in
Female
Female Receptacle
Single
Straight
1
12
1 1/8-16
Bare Wire
Patented Quad Beam Contact Provides High Reliability and Low Resistance; Flexible
Female
IP67, IP68
Yellow
PVC
Single
0.305m
Black Epoxy Zinc Die-cast
Zinc Die-Cast with Black Epoxy
5A
600VAC/VDC
221 Degrees F
-4 Degrees F
1/2-14 NPT Mount
1/2 - 14 NPT
6P
9
12
Straight
1
12
CSA Certified, UL Listed
-13 Degrees to 194 Degrees F
-4 Degrees F to 221 Degrees F
-20°C to +105°C
Wire Leads
Female, Mini Receptacle
E152210
600V AC/DC
16 AWG
16
UL 1015
