Home / Cordset, 5 Pin, Receptacle, Female

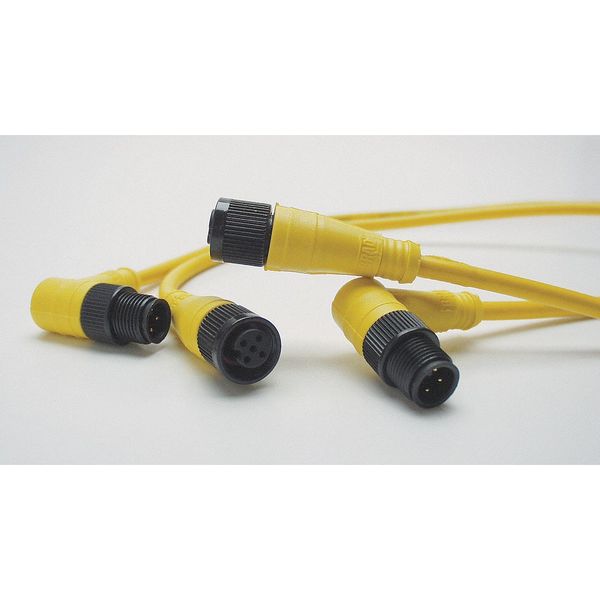

Cordset, 5 Pin, Receptacle, Female

Cordset, 5 Pin, Receptacle, Female

  • Brad Harrison
  • Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Right Angle, End 1 Connection Type M12, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 22 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, IP68, Standards CSA Certified, UL Listed, NEMA Rating 6P, End 1 Number of Keyways 1

    graingerSKU: , mscSKU: , zoro_no: G1806034, mongo_id: 65bbe98f22d7a989a9962b42

Web Price
$35.24 / each
Qty

Product Details

90 Degree
IP 67, IP 68
NEMA 6P
Single End Cordset
5.72mm (.225)
Yellow
PVC
2m
6.56 ft.
Yellow PVC, 22 AWG
Yellow
Yellow
PUR Body, Nickel Plated Brass Nut
M12x1
M12
M12 Female Right Angle X Bare Wire
Single-Ended
Mexico
Threaded
LR6837
4.0A
M12
Female
Female Right Angle
Single
Right Angle
1
5
M12
Bare Wire
Bare Wire
Highly Reliable Low Resistance Contact Design with Gold over Nickel Plating; Single End; Single Keyway
Female-Pigtail
IP68
Yellow
PVC
Single
No
PVC
PUR
Nickel-plated Brass
Fluoro-elastomer
Gold
4A
250VAC/DC
221 Degrees F
-4 Degrees F
6P
5
5
90° to Pigtail
1
5
CSA Certified, UL Listed
-4 Degrees to 221 Degrees F
-4 Degrees F to 221 Degrees F
-20°C to +105°C
E152210
250V AC/DC
22 AWG
22
Brown, White, Blue, Black, Gray
E152210
