Home / Extension Cordset, 5Pin, Receptacle, Female

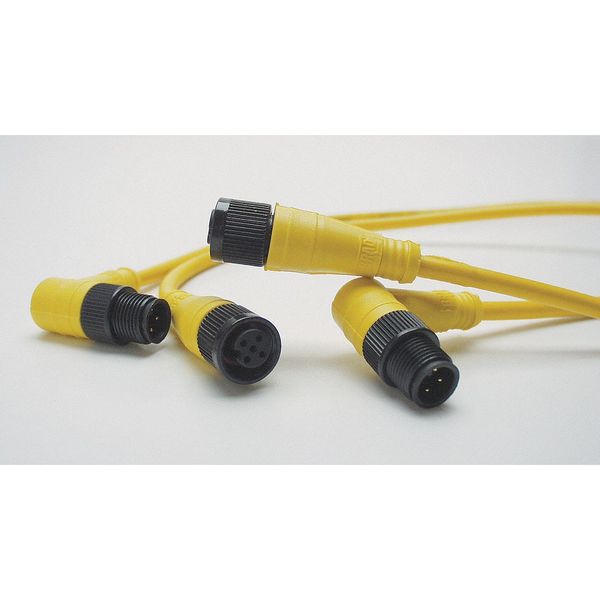

Extension Cordset, 5Pin, Receptacle, Female

SKU
Brand Brad Harrison
Categories
Description Extension Cordset, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Female, End 2 Thread M12, End 2 Mounting Orientation Straight, End 2 Number of Pins 5, End 2 Connection Type M12, Cable Length 2 m, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 22 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, IP68

Web Price

$59.99 / each

Qty

Product Details

Application/Rating - IEC IP 68

Application/Rating - NEMA NEMA 6P

Assembly Type Double End Cordset

Cable Diameter 5.72mm (.225)

Cable Jacket Color Yellow

Cable Jacket Material PVC

Cable Length 2m

Cable Length - ft 6.56 ft.

Cable Type Yellow PVC, 22 AWG

Color Brown, White, Blue, Black, Gray

Color - Cable Jacket Yellow

Connector Material PVC Body, Epoxy Coated Zinc Nut

Connector Mating Size M12x1

Connector Type M12

Cordset Configuration M12 Male Straight X M12 Female Straight

Cordset Type Double-Ended

Country of Origin (subject to change) Mexico

Coupling Style Threaded

CSA LR6837

Current - Maximum per Contact 4.0A

End 1 Connection Type M12

End 1 Gender Male

End 1 Gender and Plug End Female Straight

End 1 Keyway Single

End 1 Mounting Orientation Straight

End 1 Number of Keyways 1

End 1 Number of Pins 5

End 1 Thread M12

End 2 Connection Type M12

End 2 Gender Female

End 2 Gender and Plug End Male Straight

End 2 Keyway Single

End 2 Mounting Orientation Straight

End 2 Number of Keyways 1

End 2 Number of Pins 5

End 2 Thread M12

Features Highly Reliable Low Resistance Contact Design with Gold over Nickel Plating; Double End; Single Keyway

For Use With Heavy Duty Industrial Environments

Gender Female-Male

IP Rating IP68

Jacket Color Yellow

Jacket Material PVC

Keyway Single

LED Indicator No

Material - Cable Jacket PVC

Material - Connector Body PVC

Material - Coupling Nut Nickel-plated Brass

Material - O-Ring Fluoro-elastomer

Material - Plating Mating Gold

Max. Amps 4A

Max. Voltage 250VAC/DC

Maximum Operating Temperature 221 Degrees F

Minimum Operating Temperature -4 Degrees F

NEMA Rating 6P

Number of Conductors 5

Number of Wires 5

Orientation Straight to Straight

Package Quantity 1

Poles 5

Standards CSA Certified, UL Listed

Temp. Range -4 Degrees to 221 Degrees F

Temperature Range -4 Degrees F to 221 Degrees F

Temperature Range - Operating -20ÃÂ°C to +105ÃÂ°C

UL_ E152210

Voltage - Maximum 250V AC/DC

Wire Size 22 AWG

Wire Size AWG 22

Wire/Cable Type UL 2661
