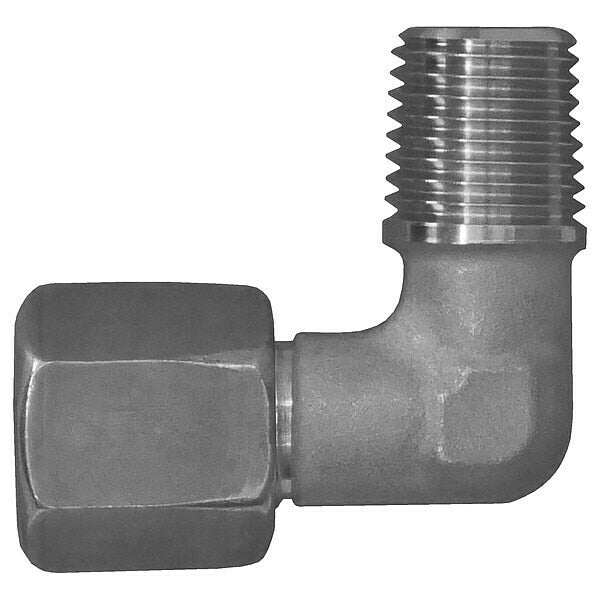

Elbow, O.D 22mm, O.L 27 1/2mm, 90

SKU
Brand Brennan Industries
Categories
Description Elbow, Application Acids, Gases, Hydraulic Fluids, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Finish/Coating Not Applicable, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 22 mm, Material Grade 316-Ti, Maximum Operating Pressure 160 bar, Maximum Operating Temperature 1,200 Degrees F, Overall Length 27 1/2 mm, Specific Fitting Shape 90 Degrees Elbow, Fitting Side A Pipe Size 22 mm, Fitting Side B Pipe Size 18 mm

Web Price

$194.99 / each

Qty

Product Details

Application Acids, Gases, Hydraulic Fluids

Compatible Fitting Brands Parker (EO/EO2)

Country of Origin (subject to change) Germany

Finish/Coating Not Applicable

Fitting Material Stainless Steel

Fitting Side A Connection Type Compression

Fitting Side A Pipe Size 22 mm

Fitting Side A Tube Outer Diameter 22 mm

Fitting Side B Connection Type MNPT

Fitting Side B Pipe Size 18 mm

Hex Size 36 mm

Material Grade 316-Ti

Maximum Operating Pressure 160 bar

Maximum Operating Temperature 1,200 Degrees F

Minimum Operating Temperature -425 Degrees F

Overall Length 27 1/2 mm

Package Quantity 1

Resistance Properties Corrosion-Resistant, Temperature-Resistant

Series Brennan DIN Metric Compression

Specific Fitting Shape 90 Degrees Elbow

Standards ABS (American Bureau of Shipping), ANSI B1.20.1, BV (Bureau Veritas), DIN 2353, DNV GL, ISO 8434-1, Lloyd's Register, RINA (Registro Italiano Navale)

System of Measurement Metric

Thread Size A M30 x 2

Thread Size B 3/4-14
