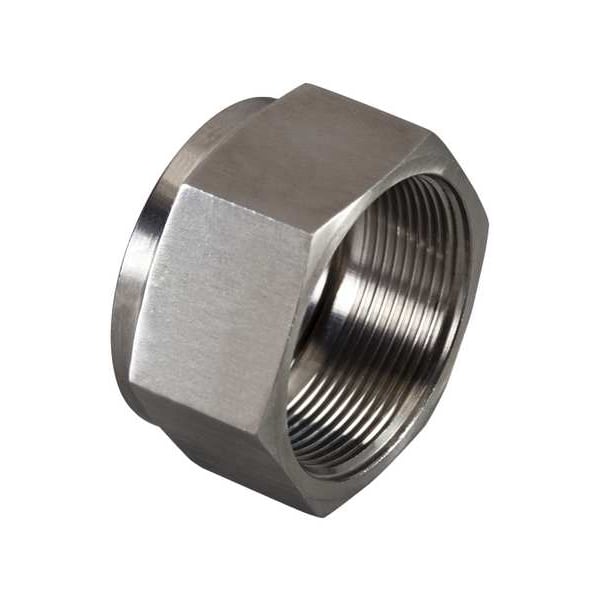

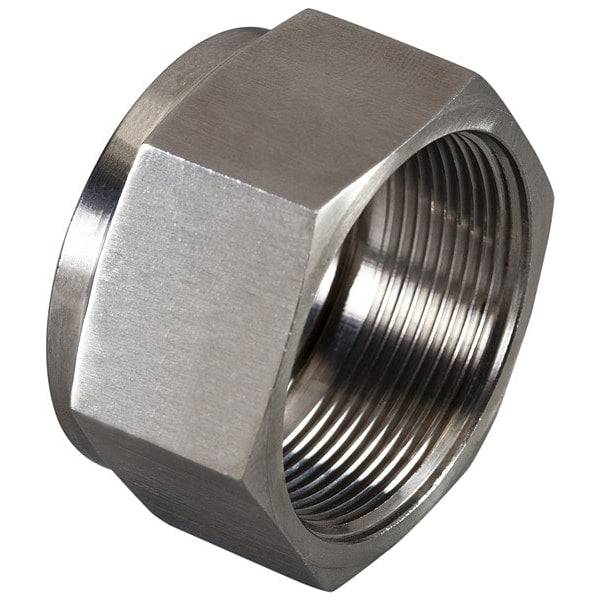

Instrumentation Fittings, 1/4", Plug, SS

SKU
Brand Brennan Industries
Categories
Description Compression Nut, Application Gases, Hydraulic, Process, Tubing Systems, Fitting Material Stainless Steel, Material Grade 316, Maximum Operating Temperature 1,200 Degrees F, Overall Length 15/32 in, Thread Size 5/16-24, Specific Fitting Shape Nut, System of Measurement Imperial, Compatible Tube Outer Diameter 1/8 in, Compatible Fitting Brands Parker A-LOK; Swagelok, Series Brennan Instrumentation, Standards ASME B31.3-2002, ASTM A269-04, ASTM F1387, Fitting Connection Type Compression
graingerSKU: 782K80, mscSKU: , zoro_no: G405386393, mongo_id: 65bbe89022d7a989a990005a

Web Price

$3.19 / each

Qty

Product Details

Application Gases, Hydraulic, Process, Tubing Systems

Compatible Fitting Brands Parker A-LOK; Swagelok

Compatible Tube Outer Diameter 1/8 in

Compliance ASME Specifications, ASTM Specifications

Compression Thread Size 5/16-24

Connection Type Compression

Country of Origin (subject to change) India

End Connection Type Compression

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Compression

Fitting Material Stainless Steel

Fitting Shape Nut

For Tube OD 1/8 in

For Tube Outside Diameter 1/8 in

Hex Size 43/100 in

Material Grade 316

Max. Pressure 75000 psi

Maximum Operating Temperature 1,200 Degrees F

Overall Length 15/32 in

Package Quantity 1

Pipe Size - Pipe Fitting 1/8 in

Series Brennan Instrumentation

Special Features All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on Thick and Thin Wall Tubing

Specific Fitting Shape Nut

Standards ASME B31.3-2002, ASTM A269-04, ASTM F1387

System of Measurement Imperial

Temp. Range -20 Degrees to 100 Degrees F

Thread Size 5/16-24

Threading Size 5/16-24

Tube Fitting Material Stainless Steel

Tube Size Not Applicable
