Instrumentation Fittings, 1/4", Plug, SS

SKU
Brand Brennan Industries
Categories

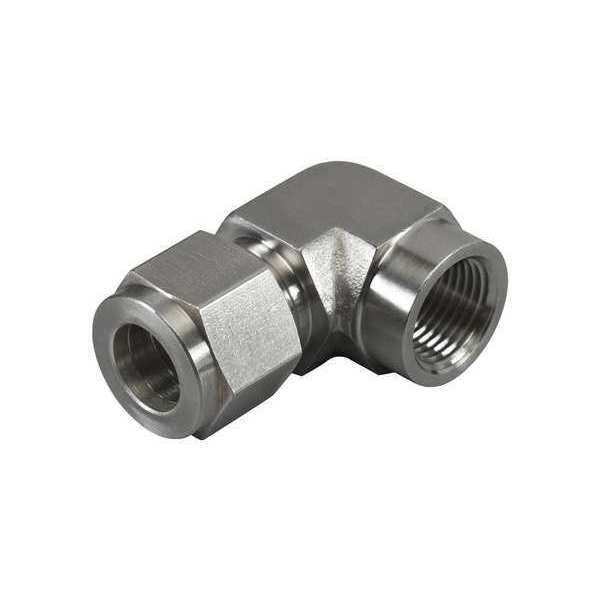

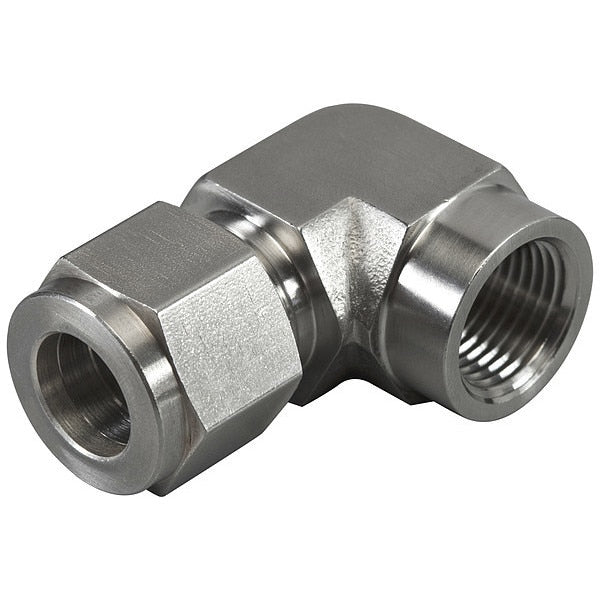

Description Instrumentation Fittings, Application Gases, Hydraulic Fluid, Fitting Side A Connection Type Compression, Fitting Side B Connection Type FNPT, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 3/8 in, Material Grade 316, Maximum Operating Pressure 3326 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 1 5/16 in, Specific Fitting Shape 90 Degrees Elbow, Fitting Side B Pipe Size 3/8 in, Compatible Fitting Brands Parker A-LOK, Swagelok, Thread Size A 9/16-18
graingerSKU: 782KF4, mscSKU: , zoro_no: G005386427, mongo_id: 65bbe83a22d7a989a98e3760

Web Price

$30.81 / each

Qty

Product Details

Application Gases, Hydraulic Fluid

Compatible Fitting Brands Parker A-LOK, Swagelok

Compatible Tube Wall Thickness 0.035 in

Compliance ASME Specifications, ASTM Specifications

Compression Thread Size 9/16-18

Connection Type Compression x FNPT

Country of Origin (subject to change) India

End Connection Type Compression, Threaded

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Instrumentation x FNPT

Fitting Material Stainless Steel

Fitting Shape Elbow

Fitting Side A Connection Type Compression

Fitting Side A Tube Outer Diameter 3/8 in

Fitting Side B Connection Type FNPT

Fitting Side B Pipe Size 3/8 in

For Tube OD 3/8 in

For Tube Outside Diameter 3/8 in

Hex Size 43/64 in

Material Grade 316

Max. Pressure 75000 psi

Maximum Operating Pressure 3326 psi

Maximum Operating Temperature 1,200 Degrees F

Overall Length 1 5/16 in

Package Quantity 1

Pipe Size 3/8 in

Pipe Size - Pipe Fitting 3/8 in x 3/8 in

Resistance Properties Vibration-Resistant

Series Brennan Instrumentation

Special Features All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Compensate for the Variables Encountered in the Tube and Materials, Do Not Significantly Reduce Flow Area, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on a Variety of Tube Materials, Work on Thick and Thin Wall Tubing

Specific Fitting Shape 90 Degrees Elbow

Standards ASME B31.3-2002, ASTM A269-04, ASTM F1387

System of Measurement Imperial

Temp. Range -20 Degrees to 100 Degrees F

Thread Size A 9/16-18

Thread Size B 3/8-18

Threading Size 9/16-18 x 3/8-18

Tube Fitting Material Stainless Steel

Tube Size Not Applicable
