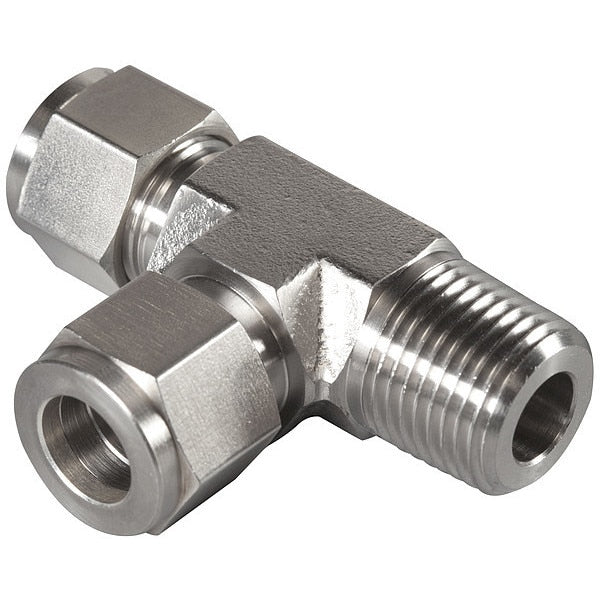

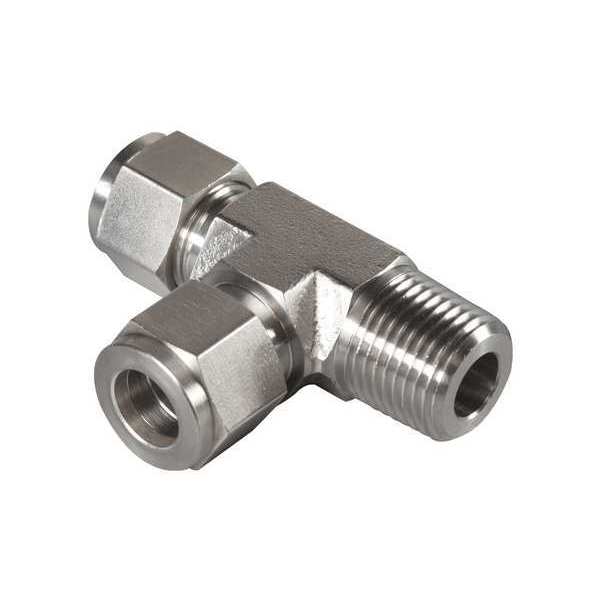

Instrumentation Fittings, 1/4", Plug, SS

SKU
Brand Brennan Industries
Categories
Description Instrumentation Fittings, Application Gas, Hydraulic, Tubing Systems, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Side C Connection Type MNPT, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Side B Tube Outer Diameter 1/2 in, Thread Size C 3/4-20, Thread Size B 1/2-14, Thread Size A 3/4-16, System of Measurement Imperial, Compatible Fitting Brands Parker A-LOK, Swagelok, Material Grade 316
graingerSKU: null, mscSKU: null, zoro_no: G405386485, mongo_id: 65bbe5f63aaddbd5a9ff9cef

Web Price

$59.69 / each

Qty

Product Details

Application Gas, Hydraulic, Tubing Systems

Compatible Fitting Brands Parker A-LOK, Swagelok

Compatible Tube Hardness 90 HRB

Compatible Tube Wall Thickness 0.041 in

Compliance ASME Specifications, ASTM Specifications

Compression Thread Size 3/4-16

Connection Type Compression x Compression x MNPT

Country of Origin (subject to change) India

End Connection Type Compression, Threaded

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Instrumentation x MNPT x Instrumentation

Fitting Material Stainless Steel

Fitting Shape Tee

Fitting Side A Connection Type Compression

Fitting Side A Tube Outer Diameter 1/2 in

Fitting Side B Connection Type Compression

Fitting Side B Pipe Size 1/2 in

Fitting Side B Tube Outer Diameter 1/2 in

Fitting Side C Connection Type MNPT

Fitting Side C Pipe Size 1/2 in

For Tube OD 1/2 in x 1/2 in

For Tube Outside Diameter 1/2 in

Hex Size 22 mm

Material Grade 316

Max. Pressure 75000 psi

Maximum Operating Pressure 2111 psi

Maximum Operating Temperature 1,200 Degrees F

Minimum Operating Temperature 20 Degrees F

Overall Length 2 23/32 in

Package Quantity 1

Pipe Size 1/2 in x 1/2 in

Pipe Size - Pipe Fitting 1/2 in x 1/2 in x 1/2 in

Series Brennan Instrumentation

Special Features All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on Thick and Thin Wall Tubing

Specific Fitting Shape Tee

Standards ASME B31.3-2002, ASTM A269-04

System of Measurement Imperial

Temp. Range -20 Degrees to 100 Degrees F

Thread Size A 3/4-16

Thread Size B 1/2-14

Thread Size C 3/4-20

Threading Size 3/4-16 x 1/2-14 x 3/4-20

Tube Fitting Material Stainless Steel

Tube Size Not Applicable
