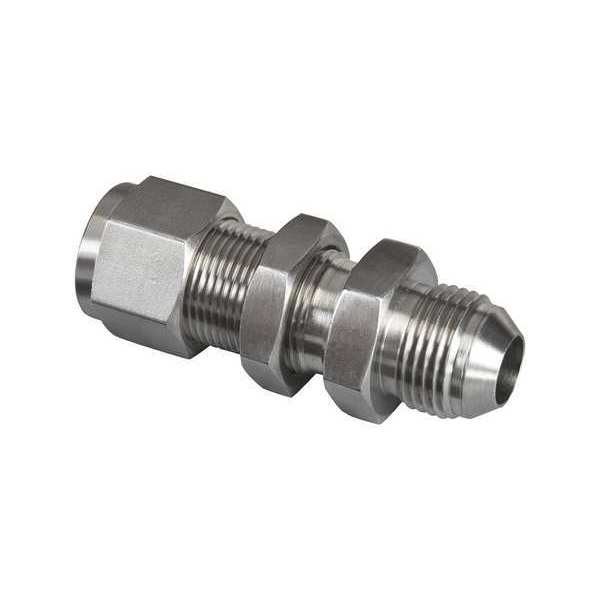

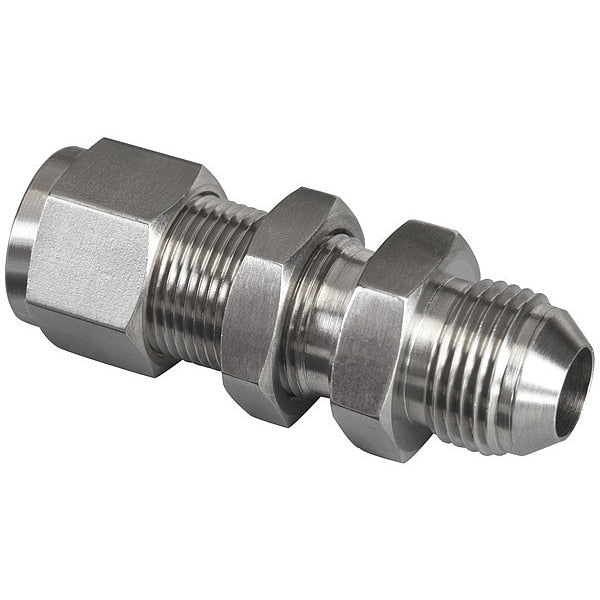

Instrumentation Fittings, 1/4", Plug, SS

SKU
Brand Brennan Industries
Categories
Description Instrumentation Fittings, Application Gases, Hydraulic Fluid, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MJIC, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Side B Tube Outer Diameter 1/2 in, Material Grade 316, Maximum Operating Pressure 2611 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 2 19/32 in, Specific Fitting Shape Bulkhead Straight, Compatible Fitting Brands Parker A-LOK, Swagelok
graingerSKU: 782KH0, mscSKU: , zoro_no: G105386419, mongo_id: 65bbe9e022d7a989a99814ff

Web Price

$52.94 / each

Qty

Product Details

Application Gases, Hydraulic Fluid

Compatible Fitting Brands Parker A-LOK, Swagelok

Compatible Tube Wall Thickness 0.041 in

Compliance ASME Specifications, ASTM Specifications

Compression Thread Size 3/4-16

Connection Type Compression x MJIC

Country of Origin (subject to change) India

End Connection Type Compression, Threaded

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Instrumentation x MJIC

Fitting Material Stainless Steel

Fitting Shape Union

Fitting Side A Connection Type Compression

Fitting Side A Tube Outer Diameter 1/2 in

Fitting Side B Connection Type MJIC

Fitting Side B Tube Outer Diameter 1/2 in

For Tube OD 1/2 in x 1/2 in

For Tube Outside Diameter 1/2 in

Hex Size 7/8 in

Material Grade 316

Max. Pressure 75000 psi

Maximum Operating Pressure 2611 psi

Maximum Operating Temperature 1,200 Degrees F

Overall Length 2 19/32 in

Package Quantity 1

Pipe Size - Pipe Fitting 1/2 in x 1/2 in

Resistance Properties Vibration-Resistant

Series Brennan Instrumentation

Special Features All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on Thick and Thin Wall Tubing

Specific Fitting Shape Bulkhead Straight

Standards ASME B31.3-2002, ASTM A269-04, ASTM F1387

System of Measurement Imperial

Temp. Range -20 Degrees to 100 Degrees F

Thread Size A 3/4-16

Thread Size B 3/4-16

Threading Size 3/4-16 x 3/4-16

Tube Fitting Material Stainless Steel

Tube Size Not Applicable
