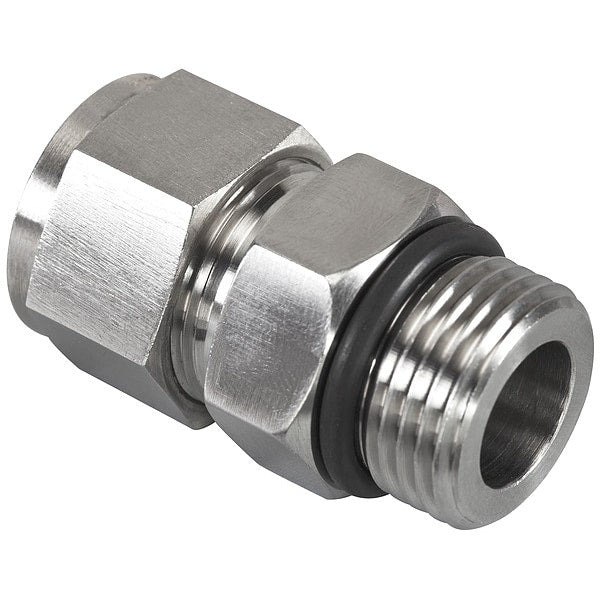

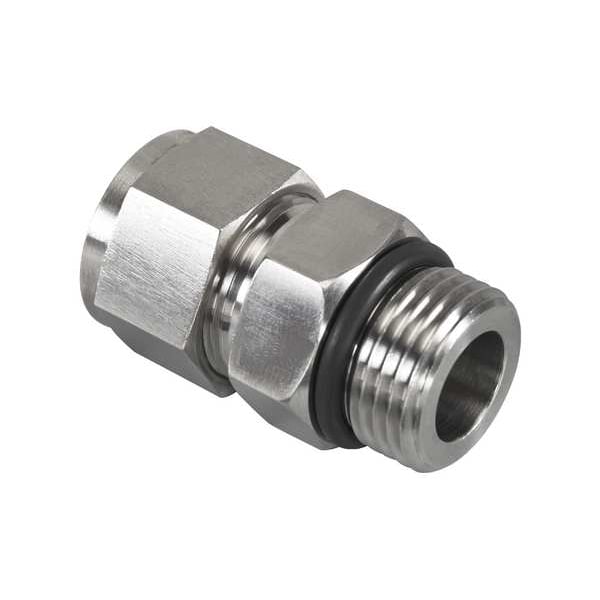

Instrumentation Fittings, 1/4", Plug, SS

SKU
Brand Brennan Industries
Categories
Description Instrumentation Fittings, Application Gases, Hydraulic Fluid, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MORB, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/4 in, Material Grade 316, Maximum Operating Pressure 4020 psi, Maximum Operating Temperature 400 Degrees F, Overall Length 1 11/32 in, Specific Fitting Shape Straight, Compatible Fitting Brands Parker A-LOK, Swagelok, Thread Size A 7/16-20, Thread Size B 7/16-20
graingerSKU: 782KH1, mscSKU: , zoro_no: G605386483, mongo_id: 65bbe6c33aaddbd5a904fca3

Web Price

$15.86 / each

Qty

Product Details

Application Gases, Hydraulic Fluid

Compatible Fitting Brands Parker A-LOK, Swagelok

Compatible Tube Wall Thickness 0.028 in

Compliance ASME Specifications, ASTM Specifications

Compression Thread Size 5/16-24

Connection Type Compression x MORB

Country of Origin (subject to change) India

End Connection Type Compression, Threaded

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Instrumentation x MORB

Fitting Material Stainless Steel

Fitting Shape Adapter

Fitting Side A Connection Type Compression

Fitting Side A Tube Outer Diameter 1/4 in

Fitting Side B Connection Type MORB

For Tube OD 1/4 in

For Tube Outside Diameter 1/4 in

Hex Size 9/16 in

Material Grade 316

Max. Pressure 75000 psi

Maximum Operating Pressure 4020 psi

Maximum Operating Temperature 400 Degrees F

Overall Length 1 11/32 in

Package Quantity 1

Pipe Size - Pipe Fitting 1/4 in x 1/4 in

Resistance Properties Vibration-Resistant

Series Brennan Instrumentation

Special Features All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on Thick and Thin Wall Tubing

Specific Fitting Shape Straight

Standards ASME B31.3-2002, ASTM A269-04, ASTM F1387

System of Measurement Imperial

Temp. Range -20 Degrees to 100 Degrees F

Thread Size A 7/16-20

Thread Size B 7/16-20

Threading Size 7/16-20 x 7/16-20

Tube Fitting Material Stainless Steel

Tube Size Not Applicable
