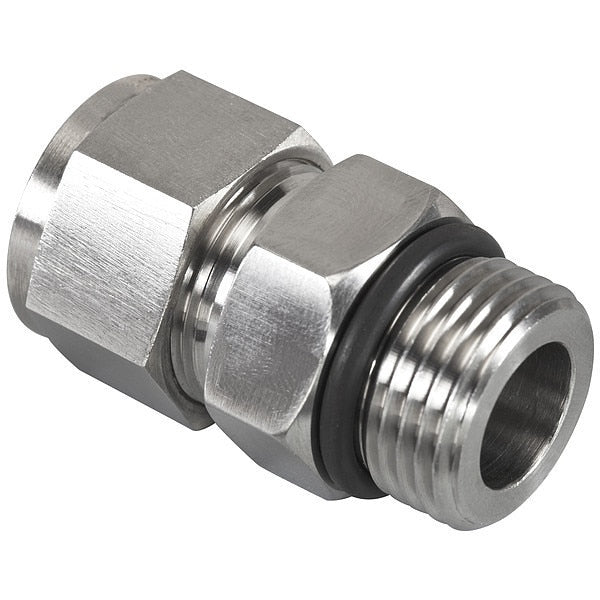

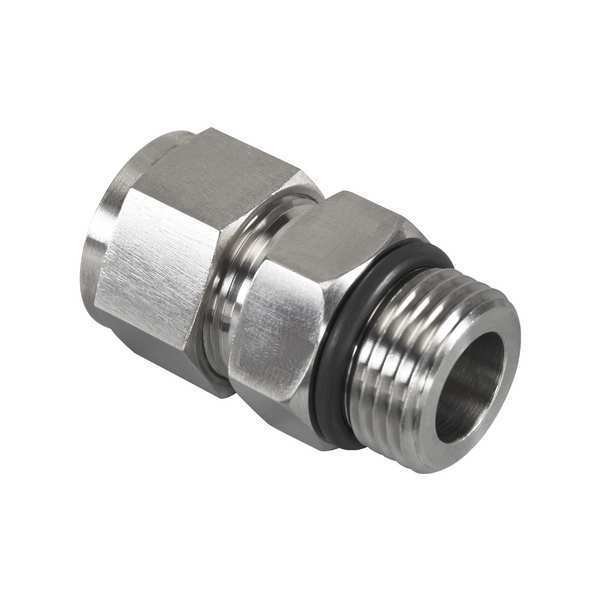

Instrumentation Fittings, 1/4", Plug, SS

SKU
Brand Brennan Industries
Categories
Description Instrumentation Fittings, Application Gases, Hydraulic Fluid, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MORB, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 3/8 in, Material Grade 316, Maximum Operating Pressure 3326 psi, Maximum Operating Temperature 400 Degrees F, Overall Length 1 15/32 in, Specific Fitting Shape Straight, Compatible Fitting Brands Parker A-LOK, Swagelok, Thread Size A 9/16-18, Thread Size B 9/16-18
graingerSKU: 782KH2, mscSKU: , zoro_no: G505386408, mongo_id: 65bbe9ba22d7a989a9972f9b

Web Price

$23.61 / each

Qty

Product Details

Application Gases, Hydraulic Fluid

Compatible Fitting Brands Parker A-LOK, Swagelok

Compatible Tube Wall Thickness 0.035 in

Compliance ASME Specifications, ASTM Specifications

Compression Thread Size 9/16-18

Connection Type Compression x MORB

Country of Origin (subject to change) India

End Connection Type Compression, Threaded

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Instrumentation x MORB

Fitting Material Stainless Steel

Fitting Shape Adapter

Fitting Side A Connection Type Compression

Fitting Side A Tube Outer Diameter 3/8 in

Fitting Side B Connection Type MORB

For Tube OD 3/8 in

For Tube Outside Diameter 3/8 in

Hex Size 43/64 in

Material Grade 316

Max. Pressure 75000 psi

Maximum Operating Pressure 3326 psi

Maximum Operating Temperature 400 Degrees F

Overall Length 1 15/32 in

Package Quantity 1

Pipe Size - Pipe Fitting 3/8 in x 3/8 in

Resistance Properties Vibration-Resistant

Series Brennan Instrumentation

Special Features All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on Thick and Thin Wall Tubing

Specific Fitting Shape Straight

Standards ASME B31.3-2002, ASTM A269-04, ASTM F1387

System of Measurement Imperial

Temp. Range -20 Degrees to 100 Degrees F

Thread Size A 9/16-18

Thread Size B 9/16-18

Threading Size 9/16-18 x 9/16-18

Tube Fitting Material Stainless Steel

Tube Size Not Applicable
