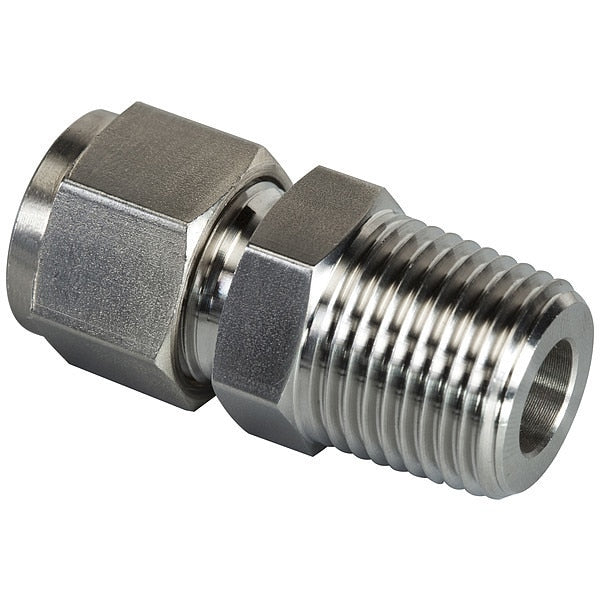

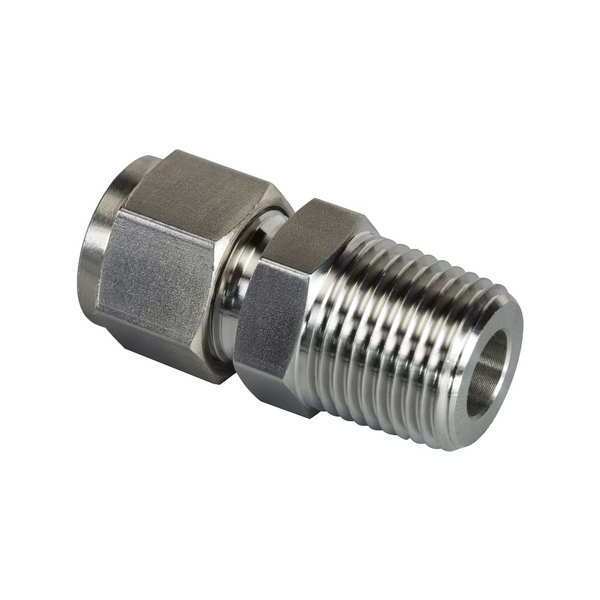

Instrumentation Fittings, 3/4" OD, SS

SKU
Brand Brennan Industries
Categories
Description Instrumentation Fittings, Application Gases, Hydraulic Fluid, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 3/4 in, Material Grade 316, Maximum Operating Pressure 2436 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 2 in, Specific Fitting Shape Straight, Fitting Side B Pipe Size 3/4 in, Compatible Fitting Brands Parker A-LOK, Swagelok, Thread Size A 1-20
graingerSKU: 782KD1, mscSKU: , zoro_no: G005386397, mongo_id: 65bbe7513aaddbd5a9089140

Web Price

$42.49 / each

Qty

Product Details

Application Gases, Hydraulic Fluid

Compatible Fitting Brands Parker A-LOK, Swagelok

Compatible Tube Wall Thickness 0.062 in

Compliance ASME Specifications, ASTM Specifications

Compression Thread Size 1 1/16-12

Connection Type Compression x MNPT

Country of Origin (subject to change) India

End Connection Type Compression, Threaded

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Instrumentation x MNPT

Fitting Material Stainless Steel

Fitting Shape Connector

Fitting Side A Connection Type Compression

Fitting Side A Tube Outer Diameter 3/4 in

Fitting Side B Connection Type MNPT

Fitting Side B Pipe Size 3/4 in

For Tube OD 3/4 in

For Tube Outside Diameter 3/4 in

Hex Size 1 1/16 in

Material Grade 316

Max. Pressure 75000 psi

Maximum Operating Pressure 2436 psi

Maximum Operating Temperature 1,200 Degrees F

Overall Length 2 in

Package Quantity 1

Pipe Size 3/4 in

Pipe Size - Pipe Fitting 3/4 in x 3/4 in

Resistance Properties Vibration-Resistant

Series Brennan Instrumentation

Special Features All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on Thick and Thin Wall Tubing

Specific Fitting Shape Straight

Standards ASME B31.3-2002, ASTM A269-04, ASTM F1387

System of Measurement Imperial

Temp. Range -20 Degrees to 100 Degrees F

Thread Size A 1-20

Thread Size B 3/4-14

Threading Size 1-20 x 3/4-14

Tube Fitting Material Stainless Steel

Tube Size Not Applicable
