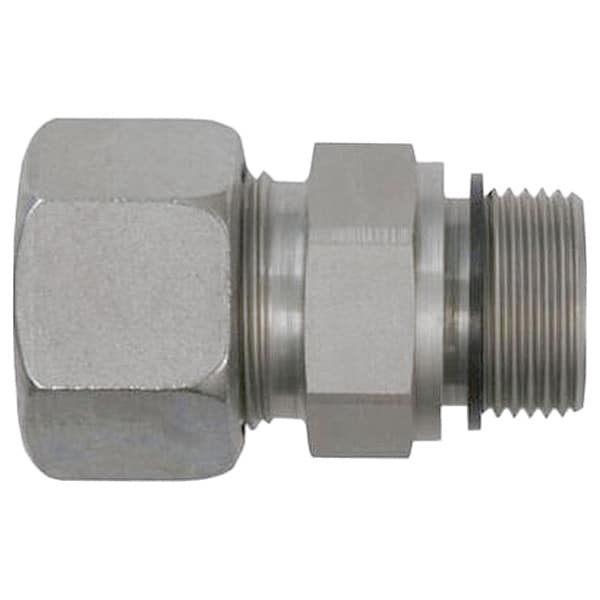

MBSPP Straight, O.D 35 mm, O.L 58mm, 1200F

SKU
Brand Brennan Industries
Categories
Description MBSPP Straight, Application Acids, Gases, Hydraulic Fluids, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MBSPP, Finish/Coating Not Applicable, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 35 mm, Material Grade 316-Ti, Maximum Operating Pressure 250 bar, Maximum Operating Temperature 1,200 Degrees F, Overall Length 58 mm, Specific Fitting Shape Straight, Fitting Side A Pipe Size 35 mm, Fitting Side B Pipe Size 23 mm
graingerSKU: , mscSKU: , zoro_no: G110190209, mongo_id: 65bbe6a13aaddbd5a9041556

Web Price

$194.99 / each

Qty

Product Details

Application Acids, Gases, Hydraulic Fluids

Compatible Fitting Brands Parker (EO/EO2)

Country of Origin (subject to change) Germany

Finish/Coating Not Applicable

Fitting Material Stainless Steel

Fitting Side A Connection Type Compression

Fitting Side A Pipe Size 35 mm

Fitting Side A Tube Outer Diameter 35 mm

Fitting Side B Connection Type MBSPP

Fitting Side B Pipe Size 23 mm

Hex Size 50 mm

Material Grade 316-Ti

Maximum Operating Pressure 250 bar

Maximum Operating Temperature 1,200 Degrees F

Minimum Operating Temperature -425 Degrees F

Overall Length 58 mm

Package Quantity 1

Resistance Properties Corrosion-Resistant, Temperature-Resistant

Series Brennan DIN Metric Compression

Specific Fitting Shape Straight

Standards ABS (American Bureau of Shipping), BS 5200, BV (Bureau Veritas), DIN 2353, DNV GL, ISO 1179, ISO 8434-1, ISO 8434-6, Lloyd's Register, RINA (Registro Italiano Navale)

System of Measurement Metric

Thread Size A M45 x 2

Thread Size B 1-11
