Home / MBSPT Straight, O.D 16 mm, O.L 48mm, 1200F

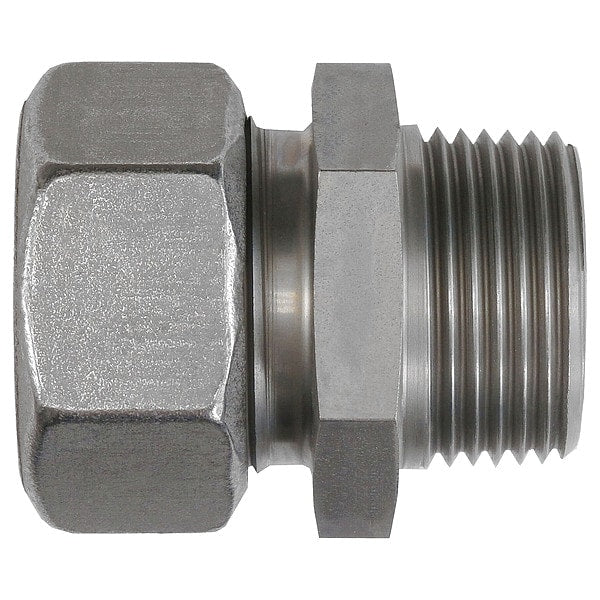

MBSPT Straight, O.D 16 mm, O.L 48mm, 1200F

SKU
Brand Brennan Industries
Categories
Description MBSPT Straight, Application Acids, Gases, Hydraulic Fluids, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MBSPT, Finish/Coating Not Applicable, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 16 mm, Material Grade 316-Ti, Maximum Operating Pressure 400 bar, Maximum Operating Temperature 1,200 Degrees F, Overall Length 48 mm, Specific Fitting Shape Straight, Fitting Side A Pipe Size 16 mm, Fitting Side B Pipe Size 12 mm
graingerSKU: , mscSKU: , zoro_no: G110190070, mongo_id: 65bbe8669a749db82278dc0d

Web Price

$92.36 / each

Qty

Product Details

Application Acids, Gases, Hydraulic Fluids

Compatible Fitting Brands Parker (EO/EO2)

Country of Origin (subject to change) Germany

Finish/Coating Not Applicable

Fitting Material Stainless Steel

Fitting Side A Connection Type Compression

Fitting Side A Pipe Size 16 mm

Fitting Side A Tube Outer Diameter 16 mm

Fitting Side B Connection Type MBSPT

Fitting Side B Pipe Size 12 mm

Hex Size 30 mm

Material Grade 316-Ti

Maximum Operating Pressure 400 bar

Maximum Operating Temperature 1,200 Degrees F

Minimum Operating Temperature -425 Degrees F

Overall Length 48 mm

Package Quantity 1

Resistance Properties Corrosion-Resistant, Temperature-Resistant

Series Brennan DIN Metric Compression

Specific Fitting Shape Straight

Standards ABS (American Bureau of Shipping), BV (Bureau Veritas), DIN 2353, DNV GL, ISO 7-1, ISO 8434-1, Lloyd's Register, RINA (Registro Italiano Navale)

System of Measurement Metric

Thread Size A M24 x 1.5

Thread Size B 1/2-14
