Home / MNPT Straight, O.D 28 mm, O.L 60 mm, 1200F

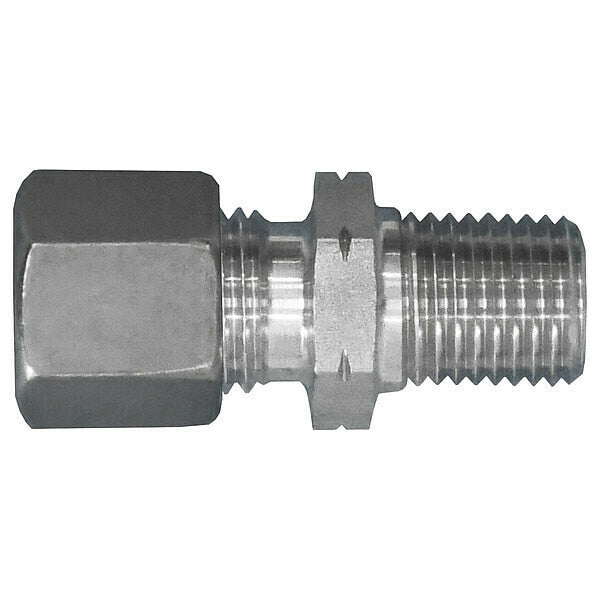

MNPT Straight, O.D 28 mm, O.L 60 mm, 1200F

SKU
Brand Brennan Industries
Categories
Description MNPT Straight, Application Acids, Gases, Hydraulic Fluids, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Finish/Coating Not Applicable, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 28 mm, Material Grade 316-Ti, Maximum Operating Pressure 160 bar, Maximum Operating Temperature 1,200 Degrees F, Overall Length 60 mm, Specific Fitting Shape Straight, Fitting Side A Pipe Size 28 mm, Fitting Side B Pipe Size 24 mm
graingerSKU: null, mscSKU: null, zoro_no: G610190051, mongo_id: 65bbe5f63aaddbd5a9ff9b63

Web Price

$199.99 / each

Qty

Product Details

Application Acids, Gases, Hydraulic Fluids

Compatible Fitting Brands Parker (EO/EO2)

Country of Origin (subject to change) Germany

Finish/Coating Not Applicable

Fitting Material Stainless Steel

Fitting Side A Connection Type Compression

Fitting Side A Pipe Size 28 mm

Fitting Side A Tube Outer Diameter 28 mm

Fitting Side B Connection Type MNPT

Fitting Side B Pipe Size 24 mm

Hex Size 41 mm

Material Grade 316-Ti

Maximum Operating Pressure 160 bar

Maximum Operating Temperature 1,200 Degrees F

Minimum Operating Temperature -425 Degrees F

Overall Length 60 mm

Package Quantity 1

Resistance Properties Corrosion-Resistant, Temperature-Resistant

Series Brennan DIN Metric Compression

Specific Fitting Shape Straight

Standards ABS (American Bureau of Shipping), ANSI B1.20.1, BV (Bureau Veritas), DIN 2353, DNV GL, ISO 8434-1, Lloyd's Register, RINA (Registro Italiano Navale)

System of Measurement Metric

Thread Size A M36 x 2

Thread Size B 1 1/4-11 1/2
