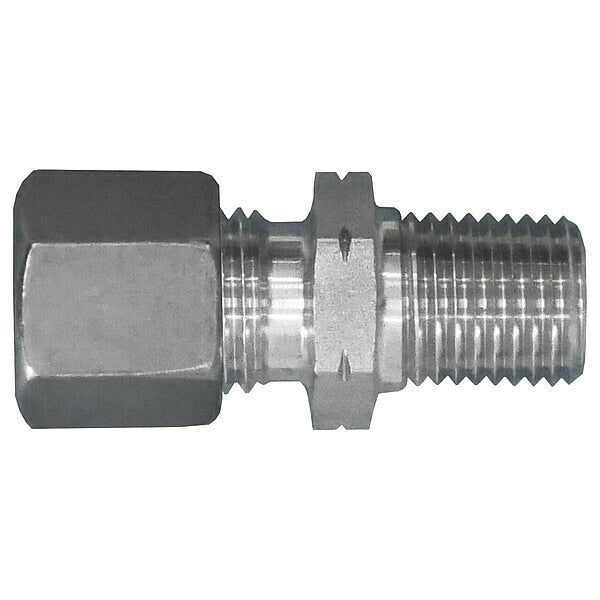

MNPT Straight, O.D 8 mm, O.L 37 1/2 mm

SKU
Brand Brennan Industries
Categories
Description MNPT Straight, Application Acids, Gases, Hydraulic Fluids, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Finish/Coating Not Applicable, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 8 mm, Material Grade 316-Ti, Maximum Operating Pressure 630 bar, Maximum Operating Temperature 1,200 Degrees F, Overall Length 37 1/2 mm, Specific Fitting Shape Straight, Fitting Side A Pipe Size 8 mm, Fitting Side B Pipe Size 4 mm
graingerSKU: , mscSKU: , zoro_no: G410190169, mongo_id: 65bbe6183aaddbd5a90081de

Web Price

$42.11 / each

Qty

Product Details

Application Acids, Gases, Hydraulic Fluids

Compatible Fitting Brands Parker (EO/EO2)

Country of Origin (subject to change) Germany

Finish/Coating Not Applicable

Fitting Material Stainless Steel

Fitting Side A Connection Type Compression

Fitting Side A Pipe Size 8 mm

Fitting Side A Tube Outer Diameter 8 mm

Fitting Side B Connection Type MNPT

Fitting Side B Pipe Size 4 mm

Hex Size 19 mm

Material Grade 316-Ti

Maximum Operating Pressure 630 bar

Maximum Operating Temperature 1,200 Degrees F

Minimum Operating Temperature -425 Degrees F

Overall Length 37 1/2 mm

Package Quantity 1

Resistance Properties Corrosion-Resistant, Temperature-Resistant

Series Brennan DIN Metric Compression

Specific Fitting Shape Straight

Standards ABS (American Bureau of Shipping), ANSI B1.20.1, BV (Bureau Veritas), DIN 2353, DNV GL, ISO 8434-1, Lloyd's Register, RINA (Registro Italiano Navale)

System of Measurement Metric

Thread Size A M16 x 1.5

Thread Size B 1/8-27
