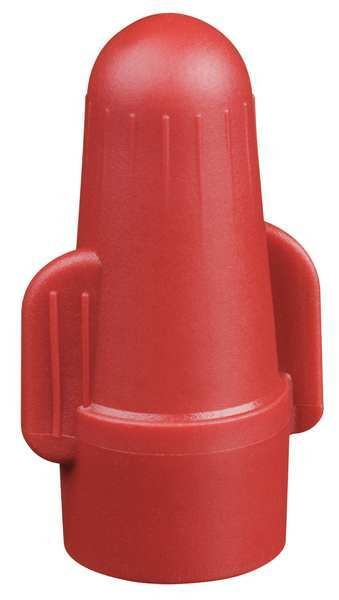

Twist On Wire Connector, 18-8 AWG, PK500

SKU
Brand Buchanan
Categories
Description Twist On Wire Connector, Color Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (2) 8 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Insulation Material Polyamide, Maximum Single Wire Size 8 AWG, Minimum Single Wire Size 18 AWG, Overall Height 0.74 in, Overall Width 0.48 in
graingerSKU: 10K057, mscSKU: , zoro_no: G3619883, mongo_id: 65bbe7ee9a749db822765277

Web Price

$81.44 / each

Qty

Product Details

Application General Purpose

Color Red

Connector Type BT2

Contact Material Steel

Country of Origin (subject to change) United States

For Conductor Material Copper

For Wire Size 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 8 AWG

Height 0.74 in

High Temperature Application No

Insulation Material Polyamide

Max. Single Wire Size 8 AWG

Max. Voltage 600V AC

Max. Wire Combination (2) 8 AWG

Maximum Conductors 6

Maximum Operating Temperature 221 Degrees F

Maximum Rated Voltage 600V

Maximum Single Wire Size 8 AWG

Maximum Voltage 600 V

Maximum Wire Combination (2) 8 AWG

Maximum Wire Gauge 8 AWG

Min. Single Wire Size 18 AWG

Min. Wire Combination (2) 18 AWG

Minimum Single Wire Size 18 AWG

Minimum Wire Combination (2) 18 AWG

Minimum Wire Gauge 18 AWG

Overall Height 0.74 in

Overall Width 0.48 in

Package Quantity 500

Series BT2

Special Features Connection Comes to Torque Quickly to Get the Job Done Efficiently, Long Swept-Wings Improve Comfort and Torque, Rounded Dial-Top With Vertical Ribs Provides Fast Fingertip Starts, Wide, Expanding Spring Makes for Easy Starts on Even the Largest Combinations

Standards CSA Certified, UL Listed

Termination Method Twist-On

Twist-On Style Wing

Twist-On Wire Size Ranges 18 AWG - 8 AWG

UL 94 Flammability Rating V-2

Width 0.48 in

Wire Connector Style Wing

Wire Size Ranges 18 AWG - 8 AWG
