Home / Twist On Wire Connector, 22-14 AWG, PK100

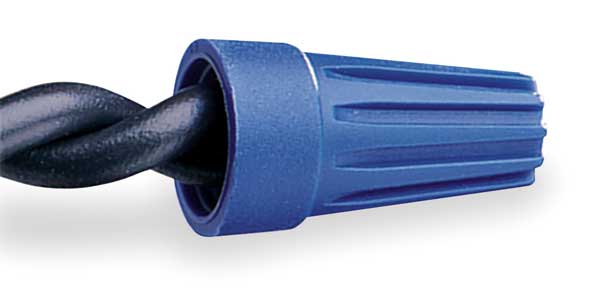

Twist On Wire Connector, 22-14 AWG, PK100

SKU
Brand Buchanan
Categories
Description Twist On Wire Connector, Color Blue, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 300 V, Minimum Wire Combination (3) 20 AWG, Maximum Wire Combination (3) 16 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Insulation Material Polypropylene, Maximum Single Wire Size 14 AWG, Minimum Single Wire Size 22 AWG, Overall Height 0.39 in, Overall Width 0.39 in
graingerSKU: 6VG23, mscSKU: , zoro_no: G2920547, mongo_id: 65bbe5d73aaddbd5a9fedb5b

Web Price

$9.24 / each

Qty

Product Details

Application General Purpose

Color Blue

Connector Type WT2

Contact Material Steel

Country of Origin (subject to change) Canada

For Conductor Material Copper

For Wire Size 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG

Height 0.39 in

High Temperature Application No

Insulation Material Polypropylene

Max. Single Wire Size 14 AWG

Max. Voltage 300V AC

Max. Wire Combination (3) 16 AWG

Maximum Conductors 5

Maximum Operating Temperature 221 Degrees F

Maximum Single Wire Size 14 AWG

Maximum Voltage 300 V

Maximum Wire Combination (3) 16 AWG

Min. Single Wire Size 22 AWG

Min. Wire Combination (2) 18 AWG

Minimum Single Wire Size 22 AWG

Minimum Wire Combination (3) 20 AWG

Overall Height 0.39 in

Overall Width 0.39 in

Package Quantity 100

Series WT2

Special Features Deep Skirt Protects Against Flash-Over, Fixed, Square-Wire Spring Creates Secure Connections, Positive Grip Shell Design for Fast, Easy Installation

Standards CSA Certified, UL Listed

Twist-On Wire Size Ranges 22 AWG - 14 AWG

UL 94 Flammability Rating V-2

Width 0.39 in

Wire Connector Style Standard

Wire Size Ranges 22 AWG - 14 AWG
