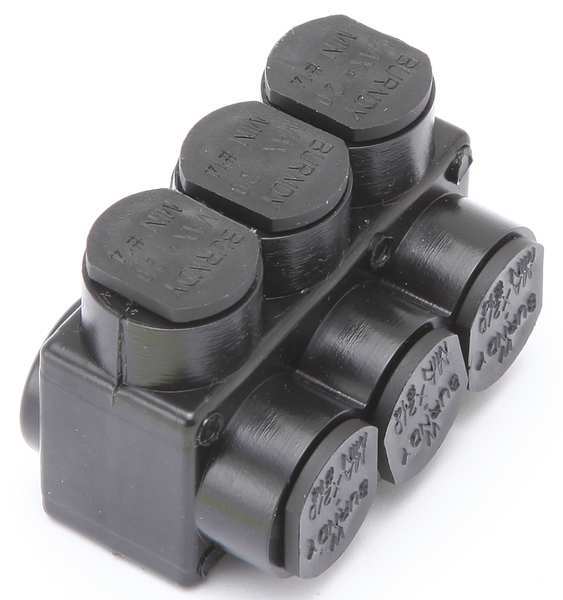

Insulated Multitap Connector, 2.19 In. L

SKU
Brand Burndy
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 3, RoHS Compliant Yes, Standards UL Listed, Compatible with Product Type Code Conductor
graingerSKU: null, mscSKU: null, zoro_no: G4688415, mongo_id: 65bbe6a53aaddbd5a9043ce9

Web Price

$40.44 / each

Product Details

Application For Indoor Use Only, Copper Or Stranded Aluminum

Body Material Aluminum

Certification - CSA Approved No

Certification - UL Listed Direct Burial No

Color Black

Compatible with Product Type Code Conductor

Conductor - AL Str Size 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG

Conductor - AL Str Size Range 14 AWG-2/0 AWG

Conductor - Copper Str Size 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG

Conductor - Copper Str Size Range 14 AWG-2/0 AWG

Conductor Size 14-2/0 AWG

Conductor Type AL C Str-SizeCU C Str-Size

Connector Type Single-Sided Entry

Country of Origin (subject to change) United States

Dimension - Height fraction 1.375 in

Dimension - Height inch 1.38 in

Dimension - L Length Overall mm 56 mm

Dimension - Length Overall inch 2.19 in

Dimension - Screw Size inch 45123

Dimension - Width fraction 1-31/100 in

Dimension - Width inch 1.31 in

Dimension - Width mm 33 mm

Direct Burial Rated No

Finish Unplated

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 2/0 AWG

For Stranded Copper Wire Size - Minimum 14 AWG

For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 2/0 AWG, 4 AWG, 6 AWG, 8 AWG

Head Style Hex

Hex Key 45001

Hex Size 3/16 in

Installation Torque Recommended in-lb 120 in-lb

Insulation Y

Insulation Material Plastisol

Insulation Type Plastisol

Length 2.19 in

Length (Straight Wireway) 2.19 in

Material Aluminum

Material - Hardware Aluminum

Max. Conductor Size 2/0 AWG

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 14 AWG

Minimum Operating Temperature -40 Degrees F

Mounting Hole Size Not Applicable

No. of Ports 3

Number of Ports 3

Overall Length 2.19 in

Overall Width 1.31 in

Package Quantity 1

Physical Attribute - Number of Screws 3

Plated N

Plating Type Unplated

Rating - Minimum Voltage 600

RoHS Compliant Yes

Screw Material Aluminum

Special Features Insulated, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Saves Time By Eliminating The Need For Taping, UV Rated

Standards UL Listed

Stud Size 3/16 in

Tap Shape L

Temperature Rating 194ÃÂ° F

Torque 120 in-lb

Trade Name UNITAPÃ¢ÂÂ¢

Type BIBS, Multi-Port

UL Listed Yes

Voltage - Maximum 600 V

Width 1.38 in

Wire Size Range 14 AWG - 2/0 AWG
