Home / Insulated Multitap Connector, 2.38 In. L

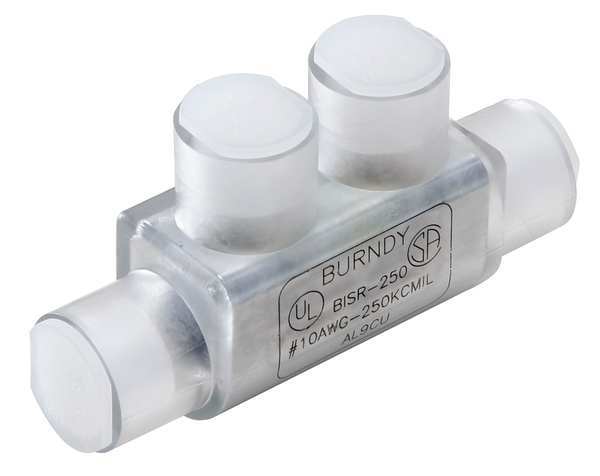

Insulated Multitap Connector, 2.38 In. L

SKU
Brand Burndy
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Head Style Hex, Hex Size 5/32 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards CSA Approved, UL 486A, UL 486B, UL Listed
graingerSKU: 22C250, mscSKU: , zoro_no: G4676524, mongo_id: 65bbe76f9a749db82273a27a

Web Price

$23.61 / each

Product Details

Application For Indoor Use Only

Body Material Aluminum

Certification - CSA Approved Yes

Certification - UL Listed Direct Burial No

Color Clear

Compatible with Product Type Code Conductor

Conductor - AL Str Size 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG

Conductor - AL Str Size Range 14 - 2 Str

Conductor - Copper Str Size #14;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2

Conductor - Copper Str Size Range 14 - 2 Str

Conductor Size 14-2 AWG

Conductor Type AL C Str-SizeCU C Str-Size

Connector Type Double-Sided Entry

Country of Origin (subject to change) United States

Current 115 A

Dimension - Height inch 1.22 in

Dimension - L Length Overall mm 60 mm

Dimension - Length Overall inch 2.38 in

Dimension - Width inch 0.75 in

Dimension - Width mm 19 mm

Direct Burial Rated No

Finish Unplated

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 2 AWG

For Stranded Copper Wire Size - Minimum 14 AWG

For Wire Size 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG

Head Style Hex

Hex Key 5/32 in

Hex Size 5/32 in

Industry Standard(s) UL468A-468B

Installation Torque Recommended in-lb 100 in-lb

Insulation Y

Insulation Material Plastisol

Insulation Type Plastisol

Length 2.38 in

Length (Straight Wireway) 2.38 in

Material Aluminum

Max. Conductor Size 2 AWG

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 14 AWG

Mounting Hole Size Not Applicable

No. of Ports 2

Number of Ports 2

Operating Voltage 600 V

Overall Length 2.38 in

Overall Width 0.75 in

Package Quantity 1

Physical Attribute - Number of Screws 2

Physical Attribute - Screw Type Allen

Plated N

Plating Type Unplated

Rating - Minimum Voltage 600

RoHS Compliant Yes

Screw Material Aluminum

Special Features Eliminates Taping, Insulated, Lowers Installation Costs, Oxide Inhibitor Inhibits Moisture and Contaminants From Entering the Contact Area, Saves Time

Standards CSA Approved, UL 486A, UL 486B, UL Listed

Standards - Industry Standards Met UL468A-468B

Stud Size 5/16 in

Tap Shape T

Temperature Rating 90 ÃÂ°C

Torque 100 in-lb

Trade Name UNITAPÃ¢ÂÂ¢

Type BISR, In-Line

UL Listed Yes

Voltage - Maximum 600 V

Width 1.22 in

Wire Size Range 14 AWG - 2 AWG
