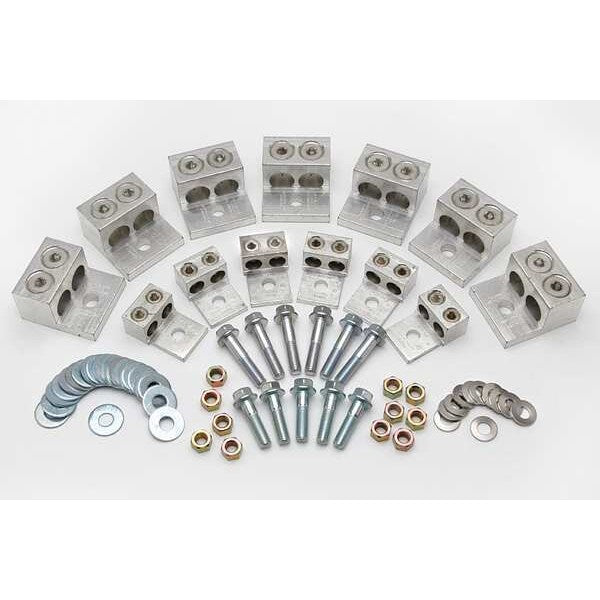

Mechancl Conn, Lug Kit, 800 kcmil to 6 AWG

SKU
Brand Burndy
Categories
Description Mechanical Connector, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, Head Style Hex, Hole Diameter 0.56 in, Body Material Aluminum, Number of Conductors 1, Connector Type Transformer Lug Kit, Compatible with Product Type Aluminum Cable, Copper Cable, Connection Orientation Dual Rated Lug, Contact Finish Tin, Includes (11) 1/2 in Belleville Washers, (11) 1/2-13 Hex Head Nuts, (22) 1/2 in Flatwashers, (5) 1/2-13 x 2 in, (6) 1/2-13 x 2-1/2 in Hex Bolts, (6) K2A31U, (7) K2A40U
graingerSKU: 22C188, mscSKU: , zoro_no: G4673322, mongo_id: 65bbe6823aaddbd5a90357ac

Web Price

$607.49 / each

Product Details

Application used to provide low contact resistance

Body Material Aluminum

Certification - CSA Approved No

Certification - UL Listed Direct Burial No

Compatible with Product Type Aluminum Cable, Copper Cable

Conductor - AL Str Size 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil

Connection Orientation Dual Rated Lug

Connector Type Transformer Lug Kit

Contact Finish Tin

Country of Origin (subject to change) United States

For Conductor Material Aluminum, Copper

For Stud Size 1/2 in

Head Style Hex

Hole Diameter 0.56 in

Includes (11) 1/2 in Belleville Washers, (11) 1/2-13 Hex Head Nuts, (22) 1/2 in Flatwashers, (5) 1/2-13 x 2 in, (6) 1/2-13 x 2-1/2 in Hex Bolts, (6) K2A31U, (7) K2A40U

Material Aluminum

Max. Conductor Size 800 kcmil Stranded

Min. Conductor Size 6 AWG Stranded

No. of Conductors 1

Number of Conductors 1

Overall Depth 6 1/8 in

Overall Length 7.06 in

Overall Width 4.5 in

Package Contents (6) K2A31U, (7) K2A40U;(5) 1/2-13 x 2 in, (6) 1/2-13 x 2-1/2 in Hex Bolts;(11) 1/2-13 Hex Head Nuts;(22) 1/2 in Flatwashers;(11) 1/2 in Belleville Washers

Package Quantity 1

Special Features Compensates For Dissimilar Metal Expansion And Contraction, Plated Steel Cap Screws, Provide Low Contact Resistance

Stud Size 1/2 in 13

Type Bolted Lugs & Terminals

UL Listed No
