Home / Mechanical Conn, Lay-In Lug, 1/0 to 14 AWG

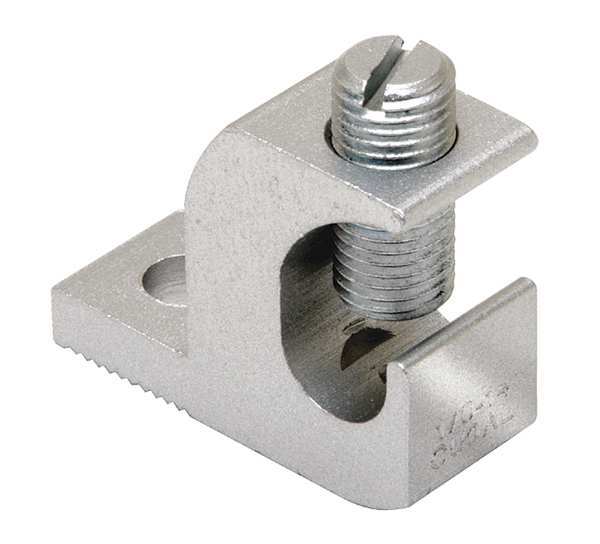

Mechanical Conn, Lay-In Lug, 1/0 to 14 AWG

Mechanical Conn, Lay-In Lug, 1/0 to 14 AWG

  • Burndy
  • Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.28 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Tongue Length 0.8 in, Tongue Width 0.63 in, Tongue Thickness 0.19 in, Connector Type Lay-In Lug, Standards CSA Certified, UL Listed

    graingerSKU: 22C057, mscSKU: , zoro_no: G4700744, mongo_id: 65bbe97422d7a989a995881e

Web Price
$8.69 / each

Product Details

For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications
Aluminum
Yes
No
Aluminum Cable, Copper Cable
8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
8 AWG-1/0 AWG
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
14 AWG-1/0 AWG
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0
14 AWG-1/0
AL C Str-SizeCU C Str-SizeCU C Solid-Size
Lay-In Lug
Tin
United States
0.80 in
1-1/6 in
1.17 in
0.28 in
7 mm
38 mm
1.50 in
0.3 in
0.60 in
Aluminum, Copper
1/0 AWG
14 AWG
1/4 in
1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG
Slotted
Slot
0.28 in
UL468A-468B
50 LBS/in
1.5 in
1.5 in
Tin-Plated Aluminum
Steel - Zinc Plated
1/0 AWG Stranded/Solid
194 Degrees F
600 V
14 AWG Stranded/Solid
1
1
5/8 in
1.5 in
1.17 in
1
Slot
Y
Tin
Zinc Plated
Steel
Easy Installation, Provides Low Contact Resistance
CSA Certified, UL Listed
UL468A-468B
1/4 in
194
0.8 in
0.19 in
0.63 in
50 in-lb
QIKLUG™
BGBL, Lay-In
Yes
600 V
1.17 in
14 AWG - 1/0 AWG
