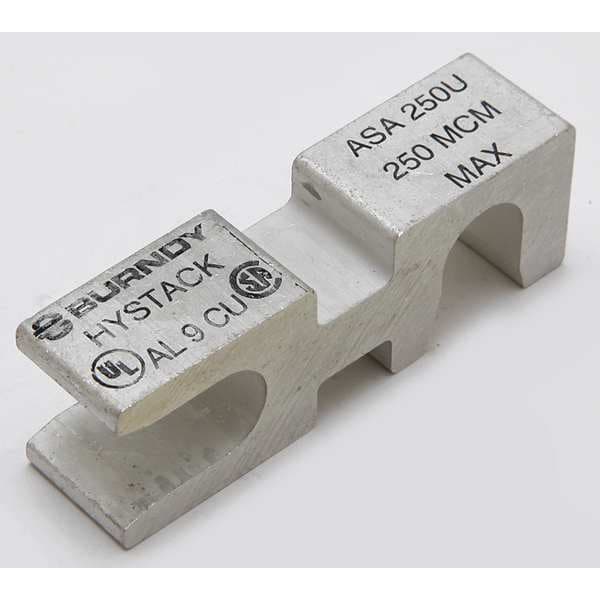

Mechnicl Conn, Adptr, 250 kcmil to 1/0 AWG

SKU
Brand Burndy
Categories
Description Mechanical Connector, For Conductor Material Aluminum, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, For Stud Size Not Applicable, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Terminations Not Applicable, Tongue Width Not Applicable, Tongue Thickness Not Applicable
graingerSKU: 22C226, mscSKU: , zoro_no: G4688616, mongo_id: 65bbe86b9a749db822790420

Web Price

$16.81 / each

Product Details

Application For Aluminum And Copper Terminals

Body Material Aluminum, Copper

Certification - CSA Approved Yes

Certification - UL Listed Direct Burial No

Conductor - AL Str Size 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil

Conductor - AL Str Size Range 1/0 AWG-250 kcmil

Conductor - Copper Str Size 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil

Conductor - Copper Str Size Range 1/0 -250 kcmil

Conductor Type AL C Str-SizeCU C Str-Size

Connector Type Stacking Adaptor

Contact Finish Tin

Country of Origin (subject to change) United States

Dimension - Bolt Size inch 2.75 in

Dimension - Height fraction 7/9 in

Dimension - Height inch 0.77 in

Dimension - L Length Overall mm 20 mm

Dimension - Length Overall inch 0.78 in

Dimension - Outside Diameter inch 0.87 in

Dimension - Pad Width inch 1.00 in

For Conductor Material Aluminum

For Stranded Copper Wire Size - Maximum 250 kcmil

For Stranded Copper Wire Size - Minimum 1/0 AWG

For Stud Size Not Applicable

For Wire Size 2/0 AWG, 250 kcmil, 3/0 AWG, 4/0 AWG

Hole Diameter Not Applicable

Hole Spacing Not Applicable

Installation Torque Recommended in-lb 480 LBS/in

Length 1.0 in

Length (Straight Wireway) 1.0 in

Material Tin-Plated Aluminum

Material - Hardware DURIUMÃ¢ÂÂ¢ Silicon Bronze

Max. Conductor Size 250 kcmil Stranded

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 1/0 AWG Stranded

Number of Terminations Not Applicable

Overall Depth 3/4 in

Overall Length 0.78 in

Overall Width 1 in

Package Quantity 1

Physical Attribute - Number of Holes 2

Physical Attribute - Number of Screws 2

Physical Attribute - Screw Type Hexagonal Bolt

Plated Y

Plating Type Tin

Rating - Minimum Voltage 600

RoHS Compliant Yes

Special Features The HYSTACK Adaptor Is Specially Designed To Allow Standard Terminals To Be Stacked On Two Or Four Hole NEMA Transformer Or Equipment Terminal Pads, HYSTACK Is Tin-Plated, High-Conductivity Aluminum To Provide Optimum Corrosion Resistance, Only Three Sizes Accommodate Terminals From 250 MCM Through 1000 MCM To Help Keep Costly Inventories To A Minimum

Standards CSA Certified

Temperature Rating 194ÃÂ° F

Tongue Thickness Not Applicable

Tongue Width Not Applicable

Trade Name HYSTACKÃ¢ÂÂ¢

Type Stacking Adapters

UL Listed Yes

Width 0.78 in

Wire Size Ranges 1/0 AWG - 250 kcmil
