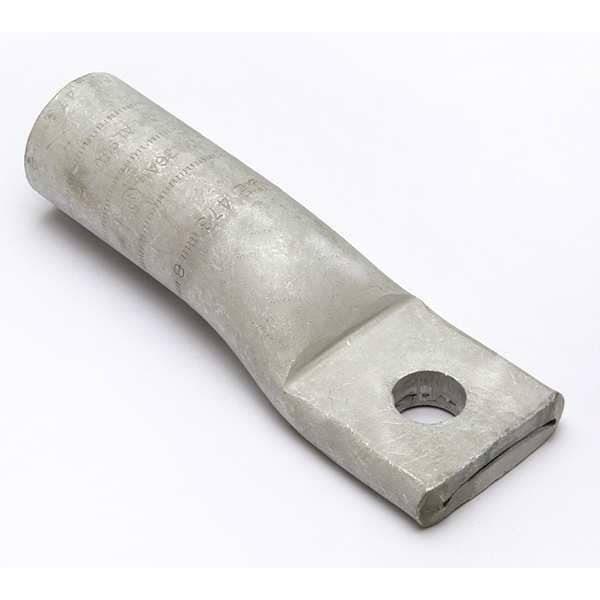

One Hole Lug Compress Conct, 500 kcmil

SKU
Brand Burndy
Categories
Description One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Pink, Die Code 300, Tongue Angle Straight, Tongue Width 1.8 in, For Conductor Material Aluminum, Copper, For Stud Size 5/8 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
graingerSKU: 22C419, mscSKU: , zoro_no: G4652216, mongo_id: 65bbe86b22d7a989a98f42bf

Web Price

$89.99 / each

Product Details

Application For Aluminum And Copper Conductors

Barrel Length Long

Barrel Outside Diameter 1.32 in

Barrel Size Standard

Barrel Style Chamfered

Cable Size 500 kcmil

Certification - CSA Approved Yes

Color Code Pink

Conductor - AL Str Size 500 kcmil

Conductor - AL Str Size Range 500 kcmil

Conductor - Copper Str Size 500 kcmil

Conductor - Copper Str Size Range 500 kcmil

Conductor - Material ALUMINUM / COPPER

Conductor Size 500 KCMIL

Conductor Type CODE

Connector Type Standard Barrel

Contact Finish Tin

Country of Origin (subject to change) United States

Die Code 300

Die Index 300

Dimension - B Length fraction 2-5/16 in

Dimension - B Length inch 2.34 in

Dimension - Bolt Hole Size inch 0.66 in

Dimension - Bolt Size fraction 45054

Dimension - Bolt Size inch 0.63

Dimension - D inch 1.91 in

Dimension - Hole Size fraction 2023-05-08

Dimension - Hole Size inch 0.69 in

Dimension - Hole Size mm 18 mm

Dimension - L Length Overall mm 141 mm

Dimension - Length Overall inch 5.56 in

Dimension - N inch 0.88 in

Dimension - Outside Diameter inch 1.32 in

Dimension - Pad Width inch 1.80 in

Dimension - Strip Length inch 2.625

Dimension - Stud Size fraction 2023-05-08

Dimension - Stud Size inch 45054

Dimension - Thread Size 5/8 in

Dimension - Z inch 1.03 in

Feature - Barrel Style Chamfered

Feature - Barrel Type Standard

Finish Type Tin-Plated

For Conductor Material Aluminum, Copper

For Stranded Aluminum Wire Size - Maximum 500 kcmil

For Stranded Copper Wire Size - Maximum 500 kcmil

For Stranded Copper Wire Size - Minimum 500 kcmil

For Stud Size 5/8 in

For Wire Size 500 kcmil

For Wire Type Solid, Stranded

Hole Center to Center Not Applicable

Hole Center to End 0.88 in

Hole Size 0.69 in

Industry Standard(s) UL468A-468B

Inspection Hole No

Item Type 3A

Length 5.56

Length (Straight Wireway) 5.56 in

Material Tin-Plated Aluminum

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35 kV AC

Overall Length 5.56 in

Overall Width 1.8 in

Package Quantity 1

Peep Hole No

Physical Attribute - Number of Holes 1

Physical Attribute - Tongue Angle Straight

Physical Attribute - Tongue Type Standard

Plate Material Electro Tin

Plated Y

Plating Type Tin - Electro Plated

Rating - KVA 35 kV

Rating - Minimum Voltage 600

RoHS Compliant Yes

Special Features Dual-Rated and Designed for Use on Both Aluminum and Copper Conductors, Durable Long Lasting Corrosion Resistance, High-Conductivity, Low Resistance and Ductility

Standards CSA Certified, UL 486A-486B, UL Listed

Standards - Industry Standards Met UL468A-468B

Strip Length 2 5/8 in

Stud Size 5/8 in

Temperature Rating 194

Termination Style Crimp

Tongue Angle Straight

Tongue Length 1.91 in

Tongue Style Standard

Tongue Thickness 0.46 in

Tongue Width 1.8 in

Tongue Width Ranges 1.50 inches and wider
