One Hole Lug Compression Connector, 8 AWG

SKU
Brand Burndy
Categories

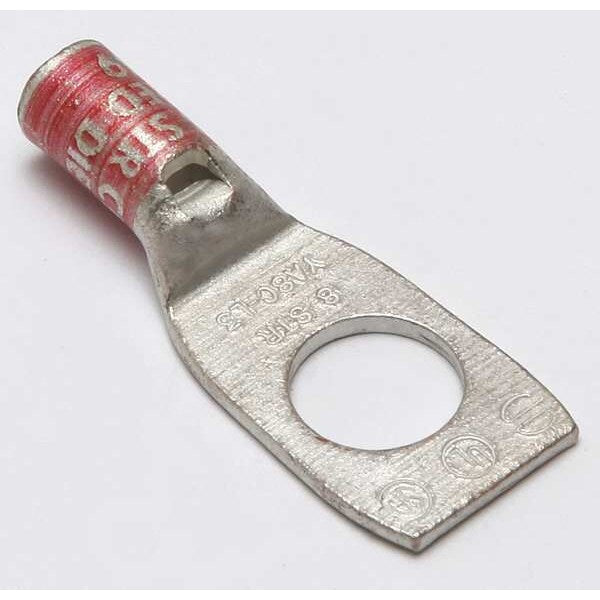

Description One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
graingerSKU: 22C301, mscSKU: , zoro_no: G4677172, mongo_id: 65bbe6613aaddbd5a902731d

Web Price

$3.94 / each

Product Details

Application For Code Conductor

Barrel Length Short

Barrel Outside Diameter 0.27 in

Barrel Size Standard

Barrel Style Chamfered

Cable Size 8 AWG

Certification - CSA Approved Yes

Color Code Red

Conductor - Copper DLO Size 8 AWG

Conductor - Copper Flex G Size 8 AWG

Conductor - Copper Flex H Size 8 AWG

Conductor - Copper Flex I Size 8 AWG

Conductor - Copper Flex K Size 8 AWG

Conductor - Copper Flex M Size 8 AWG

Conductor - Copper Solid Size 6 AWG

Conductor - Copper Solid Size Range 6 AWG

Conductor - Copper Str Compact Size 8 AWG

Conductor - Copper Str Navy Size 23 (7) Navy

Conductor - Copper Str Navy Size Range 23 (7) Navy

Conductor - Copper Str Size 8 AWG

Conductor - Copper Str Size Range 8 AWG

Conductor - Material Copper

Conductor Size 8 AWG

Conductor Type CODE/FLEX

Connector Type Standard Barrel

Contact Finish Tin

Country of Origin (subject to change) United States

Die Code 49

Die Index 49

Dimension - B Length inch 0.44 in

Dimension - Bolt Hole Size inch 0.39 in

Dimension - Bolt Size fraction 2023-03-08

Dimension - Bolt Size inch 0.38

Dimension - D inch 0.83 in

Dimension - Hole Size fraction 2023-03-08

Dimension - Hole Size inch 0.40 in

Dimension - Hole Size mm 10 mm

Dimension - L Length Overall mm 38 mm

Dimension - Length Overall inch 1.51 in

Dimension - N inch 0.41 in

Dimension - Outside Diameter inch 0.27 in

Dimension - Pad Width inch 0.58 in

Dimension - Strip Length inch 45123

Dimension - Stud Size fraction 44993

Dimension - Stud Size inch 44993

Dimension - Z inch 0.42 in

Feature - Barrel Style Chamfered

Feature - Barrel Type Standard

Finish Type Tin-Plated

For Conductor Material Copper

For Stranded Copper Wire Size - Maximum 8 AWG

For Stranded Copper Wire Size - Minimum 8 AWG

For Stud Size 3/8 in

For Wire Size 8 AWG

For Wire Type Solid, Stranded

Hole Center to Center Not Applicable

Hole Center to End 0.41 in

Hole Size 0.4 in

Industry Standard(s) UL 486A-486B

Inspection Hole Yes

Length 1.51

Length (Straight Wireway) 1.51 in

Material Copper

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35 kV AC

Overall Length 1.51 in

Overall Width 0.59 in

Package Quantity 1

Peep Hole Yes

Physical Attribute - Number of Holes 1

Physical Attribute - Tongue Angle Straight

Physical Attribute - Tongue Type Standard

Plate Material Electro Tin

Plated Y

Plating Type Tin - Electro Plated

Rating - KVA 35 kV

Rating - Minimum Voltage 600

RoHS Compliant Yes

Special Features Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv

Standards CSA Certified, UL 486A-486B, UL Listed

Strip Length 7/16 in

Stud Size 3/8 in

Temperature Rating 194

Termination Style Crimp

Tongue Angle Straight

Tongue Length 0.83 in

Tongue Style Standard

Tongue Thickness 0.06 in

Tongue Width 0.58 in

Tongue Width Ranges 0.51 - 0.75 inches

Trade Name HYLUGÃ¢ÂÂ¢
