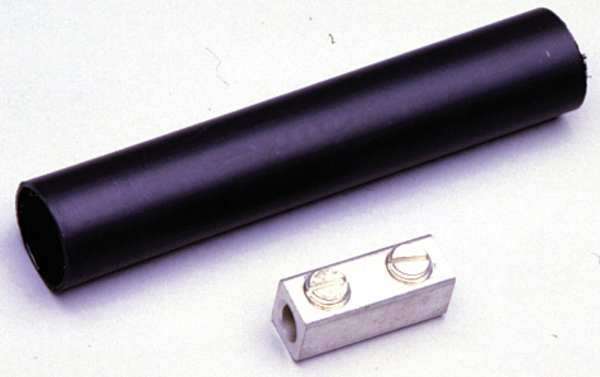

Splice Kits, 8 to 2 AWG, 194F, Blk, 600V

SKU
Brand Burndy
Categories
Description Splice Kit, Body Finish Tin Plated, Body Material Aluminum, Contact Finish Tin, Contact Material Aluminum, Color Black, Compatible with Product Type Motor Connections, Pool Wiring, Power Cables, Container Type Plastic Clam Shell, For Conductor Material Aluminum, Copper, For Maximum Cable OD 0.5 in, For Wire Type Aluminum Wire, Copper Wire, Heat Shrink Material Cross-Linked Polyolefin, Includes (2) Screws, Minimum Operating Temperature 32 Degrees F, Maximum Operating Temperature 194 Degrees F
graingerSKU: 22C217, mscSKU: , zoro_no: G4959814, mongo_id: 65bbe81522d7a989a98d77b1

Web Price

$14.19 / each

Product Details

Application For All Aluminum or Copper/Aluminum Combinations

Body Finish Tin Plated

Body Material Aluminum

Certification - CSA Approved Yes

Color Black

Compatible with Product Type Motor Connections, Pool Wiring, Power Cables

Conductor - AL Str Size 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG

Conductor - AL Str Size Range 8 AWG-2 AWG

Conductor - Copper Solid Size 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG

Conductor - Copper Solid Size Range 8 AWG-4 AWG

Conductor - Copper Str Size 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG

Conductor - Copper Str Size Range 8 AWG-2 AWG

Conductor Size 8-2 AWG

Conductor Type AL C Str-SizeCU C Str-Size

Connector Type Splice;Reducer

Contact Finish Tin

Contact Material Aluminum

Container Type Plastic Clam Shell

Country of Origin (subject to change) Canada

Dimension - L Length Overall mm 127 mm

Dimension - Length Overall inch 5 in

For Conductor Material Aluminum, Copper

For Conductor Type Aluminum, Copper

For Maximum Cable OD 0.5 in

For Wire Size 2 AWG, 4 AWG, 6 AWG, 8 AWG

For Wire Type Aluminum Wire, Copper Wire

Heat Shrink Material Cross-Linked Polyolefin

Hex Size Slot

Includes (2) Screws

Includes Resin No

Industry Standard(s) UL468A-468B

Insulation Y

Material Aluminum

Material - Hardware Aluminum

Max. Temp. 194 Degrees F

Max. Voltage 600 V

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 2 AWG

Minimum Operating Temperature 32 Degrees F

Minimum Wire Size 8 AWG

Overall Length 5 in

Package Quantity 1

Physical Attribute - Screw Type Slot

Plated N

Plating Type Unplated

Rating - Minimum Voltage 600

Resin Material Not Applicable

Resistance Properties Corrosion-Resistant

RoHS Compliant Yes

Screw Finish Tin Plated

Screw Material Aluminum

Special Features Connector Is Installed With Common Installation Tools, Constructed From High Strength, Low Contact Resistance And Reduces The Effects Of Galvanic Corrosion, Providing A Positive Seal Against Moisture Egress, The AMS Splice Is Dual Rated

Standards CSA Certified, UL 468A-468B, UL Listed

Standards - Industry Standards Met UL468A-468B

Temp. Range 32 Degrees to 194 Degrees F

Temperature Rating 194ÃÂ° F

Termination Style Heat Shrink

Tubing Wall Type Heavy Wall

Type AGSKIT, Above Grade

UL Listed Yes

UL Standards UL 486A-486B

Voltage Rating 600V

Wire Range 8 to 2 AWG

Wire Size Range 8 AWG - 2 AWG
