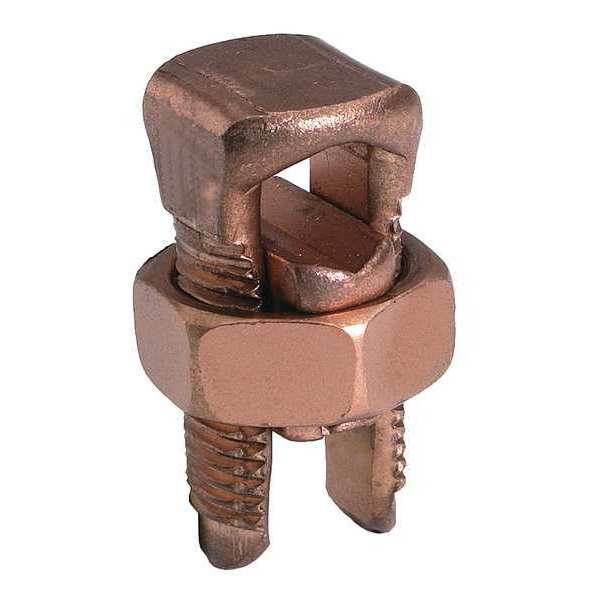

Split-Bolt Connector, 10 str to 8 str

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Unplated, Body Material Copper, For Conductor Material Copper, For Minimum Run Wire Size 10 AWG, For Maximum Run Wire Size 8 AWG, For Minimum Tap Wire Size 10 AWG, 14 AWG, For Maximum Tap Wire Size 8 AWG, Head Style Square Head, Hex Nut Size 0.5 in, Maximum Voltage 35,000 V, Torque 165 in-lb, Overall Length 0.85 in, Overall Width 0.38 in, RoHS Compliant Yes, Standards CSA Certified, UL 486A, UL 486B, UL 486D, Connects Copper to Copper Wire
graingerSKU: 22A937, mscSKU: , zoro_no: G4675684, mongo_id: 65bbe76f9a749db82273a273

Web Price

$7.31 / each

Product Details

Application For Direct Burial Applications In Earth Or Concrete, Copper

Body Finish Unplated

Body Material Copper

Certification - UL Listed Direct Burial Yes

Conductor - Copper Solid Run 8 AWG

Conductor - Copper Solid Run Range 10 AWG-8 AWG

Conductor - Copper Solid Tap 8 AWG

Conductor - Copper Solid Tap Range 14 AWG-8 AWG

Conductor - Copper Str Run 10 AWG;9 AWG;8 AWG

Conductor - Copper Str Run Range 10 STR - 8 STR

Conductor - Copper Str Tap 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG

Conductor - Copper Str Tap Range 10 STR - 8 STR

Conductor - CopperWeld Solid Tap #8

Conductor - CopperWeld Solid Tap Range #8

Conductor - CopperWeld Str Run #8

Conductor - CopperWeld Str Run Range #8

Conductor Type CU C Solid-RunCU C Str-RunCU Weld C Solid-RunCU Weld C Str-RunCU C Str-TapCU Weld C Solid-TapCU Weld C Str-TapCU C Solid-Tap

Connector Type Split Bolt

Connects Copper to Copper Wire

Country of Origin (subject to change) United States

Dimension - B Length fraction 9/20 in

Dimension - B Length inch .45 in

Dimension - Cross Flats inch 0.50 in

Dimension - L Length Overall mm 22 mm

Dimension - Length Overall inch 0.85

Dimension - Width fraction 19/50 in

Dimension - Width inch 0.38 in

Dimension - Width mm 10 mm

For Conductor Material Copper

For Maximum Run Wire Size 8 AWG

For Maximum Tap Wire Size 8 AWG

For Minimum Run Wire Size 10 AWG

For Minimum Tap Wire Size 10 AWG, 14 AWG

For Run Wire Size 10 AWG

Head Style Square Head

Hex Nut Size 0.5 in

Industry Standard(s) UL486UL467CSA C22.2 No 41

Installation Torque Recommended in-lb 80 in-lbs

Item Type 3A

Material Copper Alloy

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 14 str

Minimum Tap Conductor w/1 Maximum Main (AWG) 14 str

Overall Length 0.85 in

Overall Width 0.38 in

Package Quantity 1

Plating Type Unplated

Pressure Bar Material Copper

RoHS Compliant Yes

Special Features Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion

Standards CSA Certified, UL 486A, UL 486B, UL 486D

Standards - Industry Standards Met UL486UL467CSA C22.2 No 41

Torque 165 in-lb

Trade Name SERVITÃÂ®

Type KS, Compact

UL Listed Yes

UL Standards UL 486A-486B

Width 0.38 in

Wire Range w/Equal Main and Tap (AWG) 10 str to 8 str

Wire Size Range (Run) 10 AWG - 8 AWG
