Home / Split-Bolt Connector, 2 str to 2/0 str

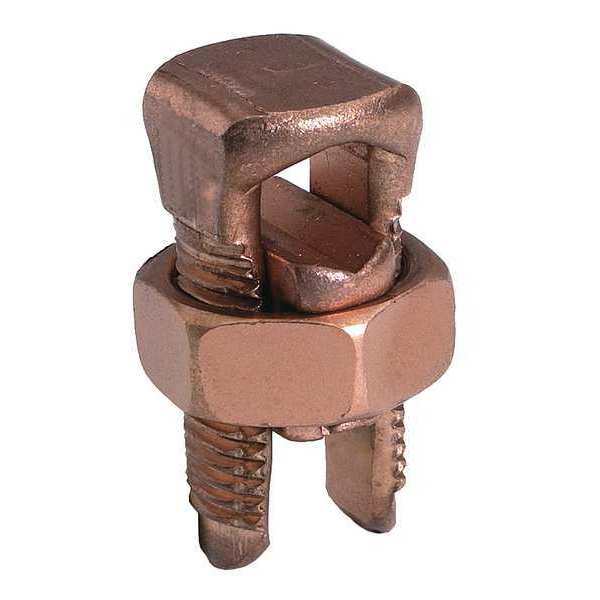

Split-Bolt Connector, 2 str to 2/0 str

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Unplated, Body Material Copper, For Conductor Material Copper, For Minimum Run Wire Size 2 AWG, For Maximum Run Wire Size 2/0 AWG, For Minimum Tap Wire Size 14 AWG, 2 AWG, For Maximum Tap Wire Size 2/0 AWG, Head Style Square Head, Hex Nut Size 1.05 in, Maximum Voltage 35,000 V, Torque 385 in-lb, Compatible Manufacturer Model Number SC2/0, Overall Length 1.94 in, Overall Width 0.82 in, RoHS Compliant Yes, Standards CSA Certified, UL 486A, UL 486B, UL 486D
graingerSKU: 22A938, mscSKU: , zoro_no: G4691592, mongo_id: 65bbe81522d7a989a98d77b8

Web Price

$23.31 / each

Product Details

Application For Direct Burial Applications In Earth Or Concrete, Copper

Body Finish Unplated

Body Material Copper

Certification - UL Listed Direct Burial Yes

Compatible Manufacturer Model Number SC2/0

Compatible with Product Type Split Bolt Covers

Compatible with Series Servit

Conductor - Copper Solid Run 3/0 AWG

Conductor - Copper Solid Run Range 2 AWG-2/0 AWG

Conductor - Copper Solid Tap 3/0 AWG

Conductor - Copper Solid Tap Range 14 AWG-2/0 AWG

Conductor - Copper Str Run 2 AWG;1 AWG;1/0 ;2/0 AWG

Conductor - Copper Str Run Range 2 STR - 2/0 STR

Conductor - Copper Str Tap 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG

Conductor - Copper Str Tap Range 2 STR - 2/0 STR

Conductor - CopperWeld Solid Run 36586

Conductor - CopperWeld Solid Run Range 36586

Conductor - CopperWeld Solid Tap 36586

Conductor - CopperWeld Solid Tap Range 36586

Conductor - CopperWeld Str Run 7 #7

Conductor - CopperWeld Str Run Range 7 #7

Conductor - CopperWeld Str Tap 7 #7

Conductor - CopperWeld Str Tap Range 7 #7

Conductor - Rebar Size 3

Conductor - Rebar Size Range 3

Conductor Type CU C Solid-RunCU C Str-RunCU Weld C Solid-RunCU Weld C Str-RunCU C Str-TapCU Weld C Solid-TapCU Weld C Str-TapCU C Solid-Tap

Connector Type Split Bolt

Connects Copper to Copper Wire

Country of Origin (subject to change) United States

Dimension - B Length fraction 9/10 in

Dimension - B Length inch .90 in

Dimension - Cross Flats inch 1.05 in

Dimension - L Length Overall mm 49 mm

Dimension - Length Overall inch 1.94

Dimension - Width fraction 41/50 in

Dimension - Width inch 0.82 in

Dimension - Width mm 21 mm

For Conductor Material Copper

For Maximum Run Wire Size 2/0 AWG

For Maximum Tap Wire Size 2/0 AWG

For Minimum Run Wire Size 2 AWG

For Minimum Tap Wire Size 14 AWG, 2 AWG

For Run Wire Size 1/0 AWG, 1 AWG, 2/0 AWG

Head Style Square Head

Hex Nut Size 1.05 in

Industry Standard(s) UL 486AUL486B

Installation Torque Recommended in-lb 385 in

Material Copper Alloy

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 14 str

Minimum Tap Conductor w/1 Maximum Main (AWG) 14 str

Overall Length 1.94 in

Overall Width 0.82 in

Package Quantity 1

Plating Type Unplated

Pressure Bar Material Copper

RoHS Compliant Yes

Special Features Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion

Standards CSA Certified, UL 486A, UL 486B, UL 486D

Standards - Industry Standards Met UL 486AUL486B

Torque 385 in-lb

Trade Name SERVITÃÂ®

Type KS, Compact

UL Listed Yes

UL Standards UL 486A-486B

Width 0.82 in

Wire Range w/Equal Main and Tap (AWG) 2 str to 2/0 str

Wire Size Range (Run) 2 AWG - 2/0 AWG
