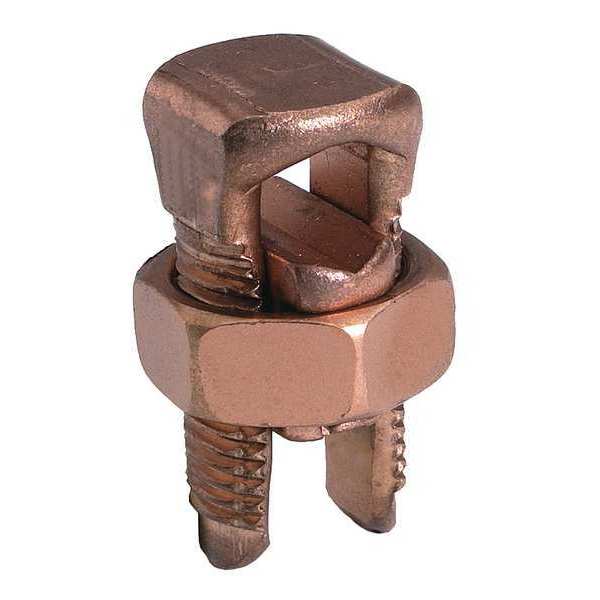

Name: Split-Bolt Connector, 4 str to 1/0 str
Brand: Burndy
SKU: G4672236
Price: 13.06 USD
Availability: OutOfStock

Home / Split-Bolt Connector, 4 str to 1/0 str

Split-Bolt Connector, 4 str to 1/0 str

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Unplated, Body Material Copper, For Conductor Material Copper, For Minimum Run Wire Size 4 AWG, For Maximum Run Wire Size 1/0 AWG, For Minimum Tap Wire Size 14 AWG, 4 AWG, For Maximum Tap Wire Size 1/0 AWG, Head Style Square Head, Hex Nut Size 0.94 in, Maximum Voltage 35,000 V, Torque 385 in-lb, Compatible Manufacturer Model Number SC2/0, Overall Length 1.77 in, Overall Width 0.73 in, RoHS Compliant Yes, Standards CSA Certified, UL 486A, UL 486B, UL 486D
graingerSKU: 22A935, mscSKU: 29230497, zoro_no: G4672236, mongo_id: 65bbe81a9a749db8227737e4

Web Price

$13.06 / each

Product Details

Application For Direct Burial Applications In Earth Or Concrete, Copper

Body Finish Unplated

Body Material Copper

Certification - UL Listed Direct Burial Yes

Compatible Manufacturer Model Number SC2/0

Compatible with Product Type Split Bolt Covers

Compatible with Series Servit

Conductor - Copper Solid Run 2/0 AWG

Conductor - Copper Solid Run Range 4 AWG-1/0

Conductor - Copper Solid Tap 2/0 AWG

Conductor - Copper Solid Tap Range 14 AWG-1/0

Conductor - Copper Str Run 4 AWG;3 AWG;2 AWG;1 AWG;1/0

Conductor - Copper Str Run Range 4 STR - 1/0 STR

Conductor - Copper Str Tap 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0

Conductor - Copper Str Tap Range 4 STR - 1/0 STR

Conductor - CopperWeld Solid Run 36557

Conductor - CopperWeld Solid Run Range 36557

Conductor - CopperWeld Solid Tap 36557

Conductor - CopperWeld Solid Tap Range 36557

Conductor - CopperWeld Str Run 4 D AWG;4 N AWG;4 P AWG;3 A AWG;3 J AWG;3 K AWG;3 N AWG;3 P AWG;2 A AWG

Conductor - CopperWeld Str Run Range 4 D AWG-2 A AWG

Conductor - CopperWeld Str Tap 5 D AWG;5 P AWG;4 A AWG;4 D AWG;4 N AWG;4 P AWG;3 A AWG;3 J AWG;3 K AWG;3 N AWG;3 P AWG;2 A AWG

Conductor - CopperWeld Str Tap Range 5 D AWG-2 A AWG

Conductor Type CU C Solid-RunCU C Str-RunCU Weld C Solid-RunCU Weld C Str-RunCU C Str-TapCU Weld C Solid-TapCU Weld C Str-TapCU C Solid-Tap

Connector Type Split Bolt

Connects Copper to Copper Wire

Country of Origin (subject to change) United States

Dimension - B Length fraction 83/100 in

Dimension - B Length inch .83 in

Dimension - Cross Flats inch 0.94 in

Dimension - L Length Overall mm 45 mm

Dimension - Length Overall inch 1.77

Dimension - Width fraction 73/100 in

Dimension - Width inch 0.73 in

Dimension - Width mm 19 mm

For Conductor Material Copper

For Maximum Run Wire Size 1/0 AWG

For Maximum Tap Wire Size 1/0 AWG

For Minimum Run Wire Size 4 AWG

For Minimum Tap Wire Size 14 AWG, 4 AWG

For Run Wire Size 1/0 AWG, 1 AWG, 2 AWG, 3 AWG

Head Style Square Head

Hex Nut Size 0.94 in

Industry Standard(s) RUS

Installation Torque Recommended in-lb 385 in

Material Copper Alloy

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 14 str

Minimum Tap Conductor w/1 Maximum Main (AWG) 14 str

Overall Length 1.77 in

Overall Width 0.73 in

Package Quantity 1

Plating Type Unplated

Pressure Bar Material Copper

RoHS Compliant Yes

Special Features Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion

Standards CSA Certified, UL 486A, UL 486B, UL 486D

Standards - Industry Standards Met RUS

Torque 385 in-lb

Trade Name SERVITÃÂ®

Type KS, Compact

UL Listed Yes

UL Standards UL 486A-486B

Width 0.73 in

Wire Range w/Equal Main and Tap (AWG) 4 str to 1/0 str

Wire Size Range (Run) 4 AWG - 1/0 AWG
