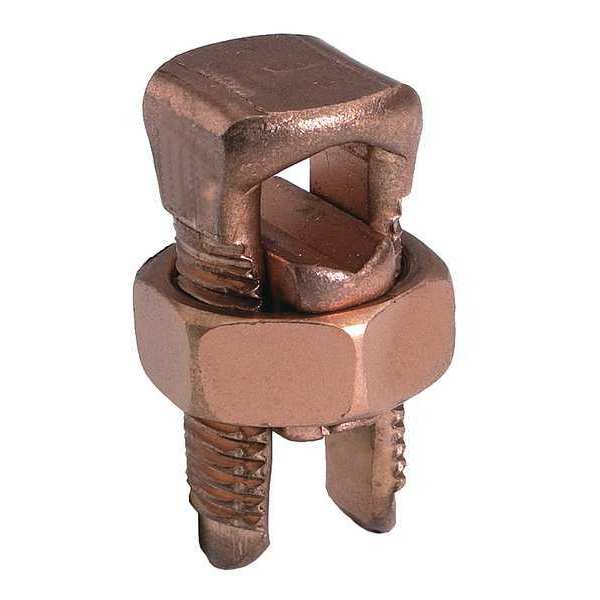

Split-Bolt Connector, 4/0 str to 750kcmil

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Unplated, Body Material Copper, For Minimum Run Wire Size 4/0 AWG, For Maximum Run Wire Size 750 kcmil, For Minimum Tap Wire Size 4/0 AWG, For Maximum Tap Wire Size 750 kcmil, Head Style Square Head, Hex Nut Size 2.31 in, Maximum Voltage 35,000 V, Torque 1,000 in-lb, Overall Length 3.51 in, Overall Width 1.94 in, Standards CSA Certified, UL 486A, UL 486B, UL 486D, Connects Copper to Copper Wire, Minimum Tap Conductor w/1 Maximum Main (AWG) 4/0 str
graingerSKU: 22A943, mscSKU: , zoro_no: G4662314, mongo_id: 65bbee36526e052139af92de

Web Price

$114.74 / each

Product Details

Application For Direct Burial Cables

Body Finish Unplated

Body Material Copper

Certification - UL Listed Direct Burial Yes

Conductor - Copper Str Run 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil

Conductor - Copper Str Run Range 4/0 STR - 750 KCMIL

Conductor - Copper Str Tap 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil

Conductor - Copper Str Tap Range 4/0 STR - 750 KCMIL

Conductor - CopperWeld Str Run 19 #5

Conductor - CopperWeld Str Run Range 19 #5

Conductor - CopperWeld Str Tap 19 #5

Conductor - CopperWeld Str Tap Range 19 #5

Conductor Type CU C Str-RunCU Weld C Str-RunCU C Str-TapCU Weld C Str-Tap

Connector Type Split Bolt

Connects Copper to Copper Wire

Country of Origin (subject to change) United States

Dimension - B Length inch 1.75 in

Dimension - Cross Flats inch 2.31 in

Dimension - L Length Overall mm 84 mm

Dimension - Length Overall inch 3.51

Dimension - Width inch 1.94 in

Dimension - Width mm 49 mm

For Maximum Run Wire Size 750 kcmil

For Maximum Tap Wire Size 750 kcmil

For Minimum Run Wire Size 4/0 AWG

For Minimum Tap Wire Size 4/0 AWG

For Run Wire Size 250 kcmil, 300 kcmil

Head style Square Head

Hex Nut Size 2.31 in

Industry Standard(s) UL 486AUL486B

Installation Torque Recommended in-lb 1000 in

Material Copper Alloy

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 4/0 str

Minimum Tap Conductor w/1 Maximum Main (AWG) 4/0 str

Overall Length 3.51 in

Overall Width 1.94 in

Package Quantity 1

Plating Type Unplated

Pressure Bar Material Copper

Special Features Compact, High Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Season Cracking And Corrosion, The SERVIT Provides Maximum Pressure And Assures A Secure Connection On All Combinations Of Run And Tap Conductors

Standards CSA Certified, UL 486A, UL 486B, UL 486D

Standards - Industry Standards Met UL 486AUL486B

Torque 1,000 in-lb

Trade Name SERVITÃÂ®

Type KS

UL Listed Yes

UL Standards UL 486A-486B

Width 1.94 in

Wire Range w/Equal Main and Tap (AWG) 4/0 str to 750 kcmil

Wire Size Range (Run) 4/0 AWG - 750 kcmil
