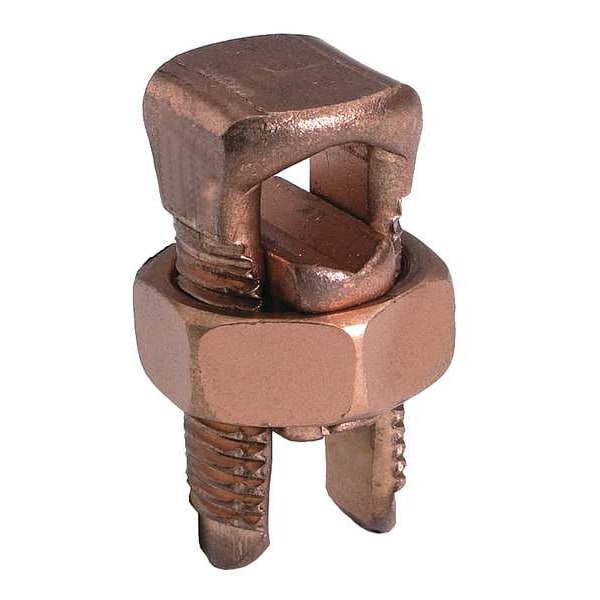

Split-Bolt Connector, 6 str to 2 str

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Unplated, Body Material Copper, For Conductor Material Copper, For Minimum Run Wire Size 6 AWG, For Maximum Run Wire Size 1 AWG, 2 AWG, For Minimum Tap Wire Size 14 AWG, 6 AWG, For Maximum Tap Wire Size 1 AWG, 2 AWG, Head Style Square Head, Hex Nut Size 0.82 in, Maximum Voltage 35,000 V, Torque 275 in-lb, Compatible Manufacturer Model Number SC2, Overall Length 1.54 in, Overall Width 0.62 in, RoHS Compliant Yes, Standards CSA Certified, UL 486A, UL 486B, UL 486D
graingerSKU: 22A931, mscSKU: 29229242, zoro_no: G4676341, mongo_id: 65bbe86b9a749db822790419

Web Price

$11.49 / each

Product Details

Application For Direct Burial Applications In Earth Or Concrete, Copper

Body Finish Unplated

Body Material Copper

Certification - UL Listed Direct Burial Yes

Compatible Manufacturer Model Number SC2

Compatible with Product Type Split Bolt Covers

Compatible with Series Servit

Conductor - Copper Solid Run 1 AWG

Conductor - Copper Solid Run Range 6 AWG-1 AWG

Conductor - Copper Solid Tap 1 AWG

Conductor - Copper Solid Tap Range 14 AWG-1 AWG

Conductor - Copper Str Run 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG

Conductor - Copper Str Run Range 6 STR - 2 STR

Conductor - Copper Str Tap 14 AWG;12 AWG;10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG

Conductor - Copper Str Tap Range 6 STR - 2 STR

Conductor - CopperWeld Solid Run #1

Conductor - CopperWeld Solid Run Range #1

Conductor - CopperWeld Solid Tap #1

Conductor - CopperWeld Solid Tap Range #1

Conductor - CopperWeld Str Run 3 #7;3A;5D

Conductor - CopperWeld Str Run Range 3 #7-5D

Conductor - CopperWeld Str Tap 3 #7;3A;5D

Conductor - CopperWeld Str Tap Range 3 #7-5D

Conductor Type CU C Solid-RunCU C Str-RunCU Weld C Solid-RunCU Weld C Str-RunCU C Str-TapCU Weld C Solid-TapCU Weld C Str-TapCU C Solid-Tap

Connector Type Split Bolt

Connects Copper to Copper Wire

Country of Origin (subject to change) United States

Dimension - B Length fraction 18/25 in

Dimension - B Length inch .72 in

Dimension - Cross Flats inch 0.82 in

Dimension - L Length Overall mm 39 mm

Dimension - Length Overall inch 1.54

Dimension - Width fraction 31/50 in

Dimension - Width inch 0.62 in

Dimension - Width mm 16 mm

For Conductor Material Copper

For Maximum Run Wire Size 1 AWG, 2 AWG

For Maximum Tap Wire Size 1 AWG, 2 AWG

For Minimum Run Wire Size 6 AWG

For Minimum Tap Wire Size 14 AWG, 6 AWG

For Run Wire Size 1 AWG, 2 AWG, 4 AWG

Head Style Square Head

Hex Nut Size 0.82 in

Industry Standard(s) RUS

Installation Torque Recommended in-lb 275 in

Material Copper Alloy

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 14 str

Minimum Tap Conductor w/1 Maximum Main (AWG) 14 str

Overall Length 1.54 in

Overall Width 0.62 in

Package Quantity 1

Plating Type Unplated

Pressure Bar Material Copper

RoHS Compliant Yes

Special Features Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion

Standards CSA Certified, UL 486A, UL 486B, UL 486D

Standards - Industry Standards Met RUS

Torque 275 in-lb

Trade Name SERVITÃÂ®

Type KS, Compact

UL Listed Yes

UL Standards UL 486A-486B

Width 0.62 in

Wire Range w/Equal Main and Tap (AWG) 6 str to 2 str

Wire Size Range (Run) 6 AWG - 2 AWG
