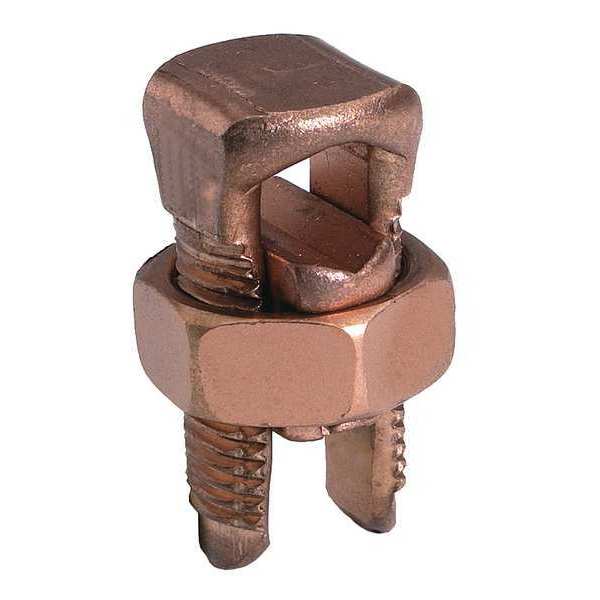

Name: Split-Bolt Connector, 8 str to 6 sol
Brand: Burndy
SKU: G4667424
Price: 6.94 USD
Availability: OutOfStock

Home / Split-Bolt Connector, 8 str to 6 sol

Split-Bolt Connector, 8 str to 6 sol

SKU
Brand Burndy
Categories
Description Split-Bolt Connector, Body Finish Unplated, Body Material Copper, For Conductor Material Copper, For Minimum Run Wire Size 8 AWG, For Maximum Run Wire Size 6 AWG, For Minimum Tap Wire Size 14 AWG, 8 AWG, For Maximum Tap Wire Size 6 AWG, Head Style Square Head, Hex Nut Size 0.63 in, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35,000 V, Torque 165 in-lb, Compatible Manufacturer Model Number SC4, Overall Length 1.14 in, Overall Width 0.45 in, RoHS Compliant Yes
graingerSKU: 22A932, mscSKU: , zoro_no: G4667424, mongo_id: 65bbe81522d7a989a98d77b4

Web Price

$6.94 / each

Product Details

Application For Direct Burial Applications In Earth Or Concrete, Copper

Body Finish Unplated

Body Material Copper

Certification - UL Listed Direct Burial Yes

Compatible Manufacturer Model Number SC4

Compatible with Product Type Split Bolt Covers

Compatible with Series Servit

Conductor - Copper Solid Run 6 AWG

Conductor - Copper Solid Run Range 8 AWG-6 AWG

Conductor - Copper Solid Tap 6 AWG

Conductor - Copper Solid Tap Range 14 AWG-6 AWG

Conductor - Copper Str Run 8 AWG;7 AWG;6 AWG

Conductor - Copper Str Run Range 8 STR - 6 STR

Conductor - Copper Str Tap 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG

Conductor - Copper Str Tap Range 8 STR - 6 STR

Conductor - CopperWeld Solid Run 6 AWG

Conductor - CopperWeld Solid Run Range 6 AWG

Conductor - CopperWeld Solid Tap 6 AWG

Conductor - CopperWeld Solid Tap Range 6 AWG

Conductor - CopperWeld Str Run 9-1/2D ;8A ;3#12

Conductor - CopperWeld Str Run Range 9-1/2D -3#12

Conductor - CopperWeld Str Size 9-1/2 D;8A ;3#12

Conductor - CopperWeld Str Size Range 9-1/2 D-3#12

Conductor - CopperWeld Str Tap 9-1/2 D;8A ;3#12

Conductor - CopperWeld Str Tap Range 9-1/2 D-3#12

Conductor Type CU C Solid-RunCU C Str-RunCU Weld C Solid-RunCU Weld C Str-RunCU C Str-TapCU Weld C Solid-TapCU Weld C Str-TapCU C Solid-Tap

Connector Type Split Bolt

Connects Copper to Copper Wire

Country of Origin (subject to change) United States

Dimension - B Length fraction 29/50 in

Dimension - B Length inch .58 in

Dimension - Cross Flats inch 0.63 in

Dimension - L Length Overall mm 29 mm

Dimension - Length Overall inch 1.14

Dimension - Width fraction 9/20 in

Dimension - Width inch 0.45 in

Dimension - Width mm 11 mm

For Conductor Material Copper

For Maximum Run Wire Size 6 AWG

For Maximum Tap Wire Size 6 AWG

For Minimum Run Wire Size 8 AWG

For Minimum Tap Wire Size 14 AWG, 8 AWG

For Run Wire Size 6 AWG

Head Style Square Head

Hex Nut Size 0.63 in

Industry Standard(s) RUS

Installation Torque Recommended in-lb 165 in

Item Type 3A

Material Copper Alloy

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35,000 V

Min. Tap Conductor w/1 Max. Main (AWG) 14 str

Minimum Operating Temperature 32 Degrees F

Minimum Tap Conductor w/1 Maximum Main (AWG) 14 str

Operating Temperature Celcius Max 90

Operating Temperature Celcius Min 0 ÃÂ°C

Operating Temperature Range Celcius 0 - 90

Operating Temperature Range Fahrenheit 32 - 194

Overall Length 1.14 in

Overall Width 0.45 in

Package Quantity 1

Plating Type Unplated

Pressure Bar Material Copper

RoHS Compliant Yes

Special Features Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion

Standards CSA Certified, UL 486A, UL 486B, UL 486D

Standards - Industry Standards Met RUS

Torque 165 in-lb

Trade Name SERVITÃÂ®

Type KS, Compact

UL Listed Yes

UL Standards UL 486A-486B

Width 0.45 in

Wire Range w/Equal Main and Tap (AWG) 8 str to 6 sol

Wire Size Range (Run) 8 AWG - 6 AWG
