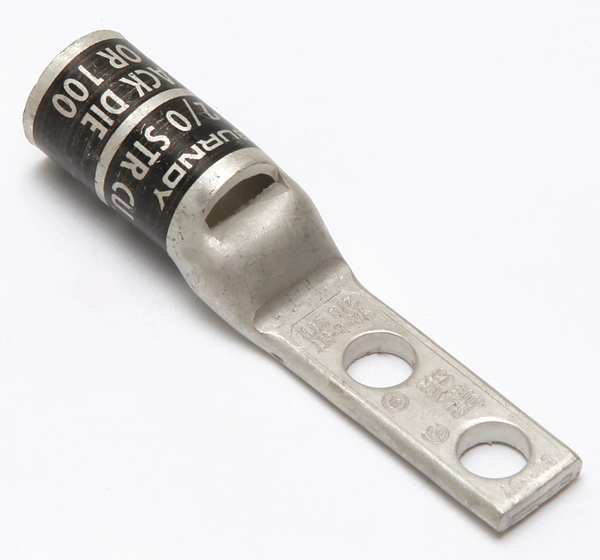

Two Hole Lug Compress Connector, 2/0 AWG

SKU
Brand Burndy
Categories
Description Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Black, Die Code 13, Tongue Angle Straight, Tongue Width 0.48 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
graingerSKU: 22P086, mscSKU: , zoro_no: G4662445, mongo_id: 65bbe81a9a749db8227737e3

Web Price

$20.74 / each

Product Details

Application For Code Conductor

Barrel Length Short

Barrel Outside Diameter 0.56 in

Barrel Size Standard

Barrel Style Chamfered

Cable Size 2/0 AWG

Certification - CSA Approved Yes

Color Code Black

Conductor - Copper Str Navy Size 125 (61) Navy

Conductor - Copper Str Navy Size Range 125 (61) Navy

Conductor - Copper Str Size 2/0 AWG

Conductor - Copper Str Size Range 2/0 AWG

Conductor - Material COPPER

Conductor Size 2/0 AWG

Conductor Type CODE

Connector Type Standard Barrel

Contact Finish Tin

Country of Origin (subject to change) United States

Die Code 13

Die Index 13

Dimension - B Length fraction 15/16 in

Dimension - B Length inch 0.94 in

Dimension - Bolt Hole Size inch 0.27 in

Dimension - Bolt Size fraction 44930

Dimension - Bolt Size inch 0.25

Dimension - D inch 1.22 in

Dimension - Hole Size fraction 2023-01-04

Dimension - Hole Size inch 0.27

Dimension - Hole Size mm 6.9 mm

Dimension - L Length Overall mm 68 mm

Dimension - Length Overall inch 2.66 in

Dimension - N inch 0.25 in

Dimension - Outside Diameter inch 0.56 in

Dimension - Pad Width inch 0.48 in

Dimension - Strip Length inch 1 in

Dimension - Stud Size fraction 2023-01-04

Dimension - Stud Size inch 44930

Dimension - Z inch 0.24 in

Feature - Barrel Style Chamfered

Feature - Barrel Type Standard

Finish Type Tin-Plated

For Conductor Material Copper

For Stranded Copper Wire Size - Maximum 2/0 AWG

For Stranded Copper Wire Size - Minimum 2/0 AWG

For Stud Size 1/4 in

For Wire Size 2/0 AWG

For Wire Type Stranded

Hole Center to Center 0.625 in

Hole Center to End 0.25 in

Hole Size 0.27 in

Industry Standard(s) UL 486A-486B

Inspection Hole Yes

Length 2.66

Length (Straight Wireway) 2.66 in

Lug Compression Connector Type Two-Hole Lug Compression Connector

Material Copper

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35 kV AC

Overall Length 2.66 in

Overall Width 0.48 in

Package Quantity 1

Peep Hole Yes

Physical Attribute - Number of Holes 2

Physical Attribute - Tongue Angle Straight

Plate Material Electro Tin

Plated Y

Plating Type Tin - Electro Plated

Rating - KVA 35 kV

Rating - Minimum Voltage 600

RoHS Compliant Yes

Special Features Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv

Standards CSA Certified, UL 486A-486B, UL Listed

Strip Length 1 in

Stud Size 1/4 in

Termination Style Crimp

Tongue Angle Straight

Tongue Length 0.49 in

Tongue Style Narrow

Tongue Thickness 0.12 in

Tongue Width 0.48 in

Tongue Width Ranges 0.26 - 0.50 inches

Trade Name HYLUGÃ¢ÂÂ¢

Type YA-L-2NT
