Home / Cable, Cat 6, 23 AWG, 100 ft, Blue

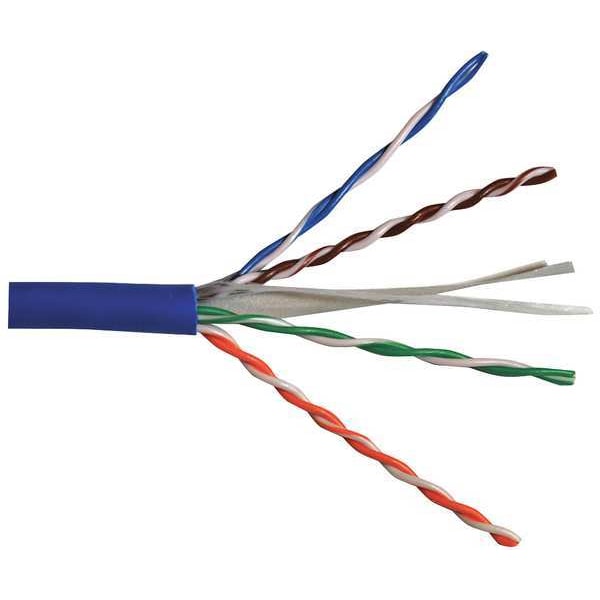

Cable, Cat 6, 23 AWG, 100 ft, Blue

SKU
Brand Carol
Categories
Description Category Cable, Cable Length 100 ft, Conductor Gauge 23 AWG, Fire Rating Plenum, Jacket Color Blue, Jacket Material PVC, Outside Diameter 1/4 in, Performance Category 6, Shielded Unshielded, Number of Conductors 8, Number of Pairs 4, NEC Article and Type 800 CMP, Standards ANSI/TIA/EIA 568 B.2-1, ANSI/TIA/EIA 862, cUL Type CMP (NFPA 262 and CSA FT6), ICEA S-102-700, ISO/IEC 11801 Ed. 2.0, UL 444, UL Type CMP (NFPA 262 and CSA FT6), Package Type Pulling Pack, Solid/Stranded Solid
graingerSKU: , mscSKU: , zoro_no: G8289732, mongo_id: 65bbe6643aaddbd5a9028eae

Web Price

$377.49 / each

Qty

Product Details

Bend Radius 1 in

Cable Length 100 ft

Category - Data Cable 6

Category Type 6

Conductor Gauge 23 AWG

Conductor Size - Data Cable 23 AWG

Country of Origin (subject to change) United States

Fire Rating Plenum

Fire Rating - Data Cable Plenum

Frequency 250 MHz

Green Environmental Attribute RoHS 2011/65/EU Compliant

Installation Temp. Range 0 Degrees to 60 Degrees C

Item - Data Cable Category Cable

Jacket Color Blue

Jacket Material PVC

Jacket Material (Wire and Cable) PVC

Jacket Material - Wire and Cable PVC

Length 100 ft.

Maximum Frequency 250 MHz

Maximum Operating Temperature 167 Degrees F

Minimum Operating Temperature -4 Degrees F

NEC Article and Type 800 CMP

Number of Conductor Pairs 4

Number of Conductors 8

Number of Pairs 4

Operating Temp. Range -20 Degrees to 75 Degrees C

Outside Dia. 0.2 in

Outside Diameter 1/4 in

Package Quantity 1

Package Type Pulling Pack

Package Type - Data Cable Pulling Pack

Performance Category 6

Plenum Rated Yes

Pulling Force 32 lb

Shielded Unshielded

Shielded / Unshielded Unshielded

Solid / Stranded Solid

Solid/Stranded Solid

Spool Length 100 ft

Standards ANSI/TIA/EIA 568 B.2-1, ANSI/TIA/EIA 862, cUL Type CMP (NFPA 262 and CSA FT6), ICEA S-102-700, ISO/IEC 11801 Ed. 2.0, UL 444, UL Type CMP (NFPA 262 and CSA FT6)

Total Number of Conductors - Data Cable 8 (4 Pair)

Wire Size 23 AWG
