Name: Comm Cable, Shielded, 20/2, 500 Ft.
Brand: Carol
SKU: G5201551
Price: 333.74 USD
Availability: InStock

Home / Comm Cable, Shielded, 20/2, 500 Ft.

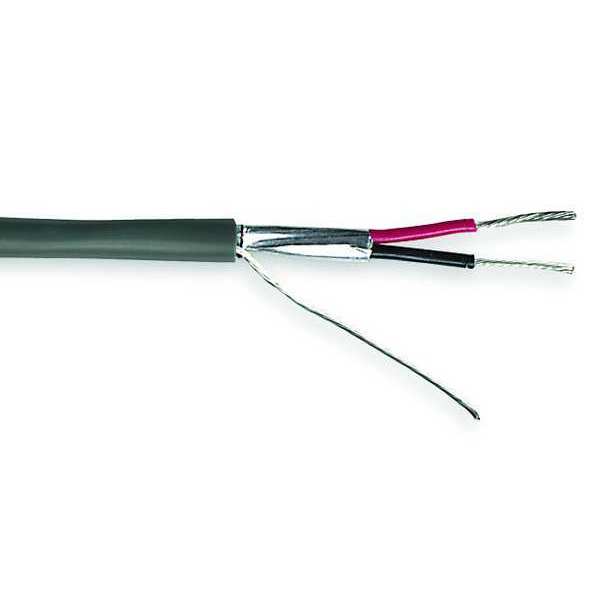

Comm Cable, Shielded, 20/2, 500 Ft.

SKU
Brand Carol
Categories
Description Communication Cable, Cable Length 500 ft, Fire Rating Commercial, Number of Strands 28, Conductor Gauge 20 AWG, Insulation Material PE, Jacket Color Gray, Jacket Material PVC, Shielded Shielded, Shielding Material 100 Percent Aluminum/Polyester Flexfoil, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.2 in, Package Type Spool, Application Audio Systems, Computer Systems, Control Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 0
graingerSKU: null, mscSKU: null, zoro_no: G5201551, mongo_id: 65bbe5b83aaddbd5a9fe1008

Web Price

$333.74 / each

Qty

Product Details

Application Audio Systems, Computer Systems, Control Systems

Application - Communication Cable Audio Systems, Broadcast Systems, Computer Systems, Control Systems

Cable Length 500 ft

Cable Sub-Category Multi-Conductor

Conductor Gauge 20 AWG

Conductor Size 20 AWG

Conductor Size - Data Cable 20 AWG

Country of Origin (subject to change) United States

Fire Rating Commercial

Fire Rating - Data Cable Commercial

Insulation Material PE

Item - Data Cable Communication Cable

Jacket Color Gray

Jacket Material PVC

Jacket Material - Wire and Cable PVC

Length 500 ft.

Maximum Capacitance 40.5 pf/ft

Maximum Operating Temperature 167 Degrees F

Maximum Voltage Rating 300 V

Minimum Operating Temperature -4 Degrees F

NEC Article 800

NEC Article and Type 800 CM

Nominal Outside Dia. 0.183 in

Number of Conductors 2

Number of Pairs 0

Number of Strands 28

Outside Diameter 0.2 in

Package Quantity 1

Package Type Spool

Package Type - Data Cable Spool

Product Type Communication Cable

Shielded Shielded

Shielded / Unshielded Shielded

Shielding Material 100% Aluminum/Polyester Flexfoil

Solid / Stranded Stranded

Solid/Stranded Stranded

Spool Length 500 ft

Standards CE 2006/95/EC, CSA CMH, UL 70,000 BTU Vertical Tray Flame Test, CSA CMH Flame Test, RoHS Compliant, UL Style 2092, UL Style 2093, UL Style 2094, UL Style 2106, UL Style 2107, UL Style 2464

Suggested Voltage Rating - Data Cable 300 V

Temp. Range -4 Degrees to 167 Degrees F

Total Number of Conductors - Data Cable 2 (0 Pair)
