Home / Condenser Fan Motor, 1-1/2HP, 1075rpm, 60Hz

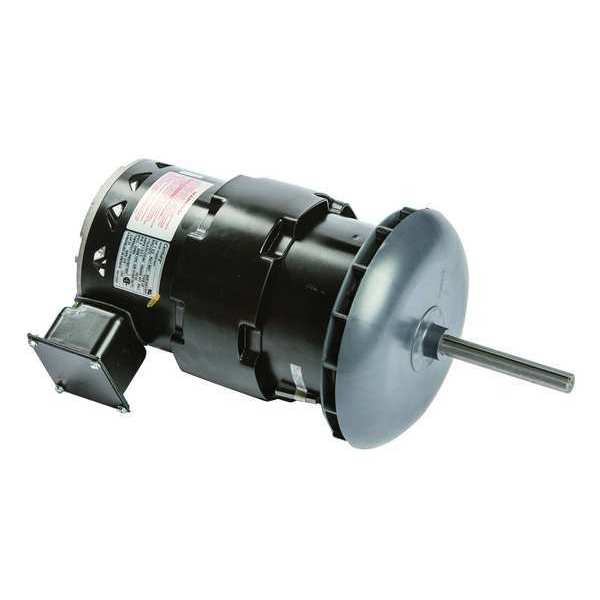

Condenser Fan Motor, 1-1/2HP, 1075rpm, 60Hz

Condenser Fan Motor, 1-1/2HP, 1075rpm, 60Hz

  • Century
  • Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 1/2 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 200-230/460V AC, 7.0/3.5 Full Load Amps, 48Y Frame, Output Watts 1100 W, 60 Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band/Stud, Motor Frame Material Steel

    graingerSKU: 3RCT5, mscSKU: , zoro_no: G1072391, mongo_id: 65bbe7949a749db822745075

Web Price
$742.49 / each
Qty

Product Details

5 5/8 in
2MDW3
Exterior
F1
Mexico
Continuous
Continuous
Belly Band, Thermally Protected, Vertical Shaft Up
48Y
7.0/3.5
1 1/2
60
F
5 in
11 7/8 in
70 Degrees C
HVAC/R
Ball
Permanent Split Capacitor
Open Air-Over
Steel
Vertical Shaft Up
Band/Stud
1
Keyed
CW/CCW
Condenser Fan
Auto
1,075
1
1100 W
16 in
1
Single
Yes
1,001-1,100
5/8 in
4 1/16 in
CSA Certified, UL Recognized
Yes
Yes
200-230/460V AC
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
31 lb
