Home / Condenser Fan Motor, 1/15to1/8HP, 1075 rpm

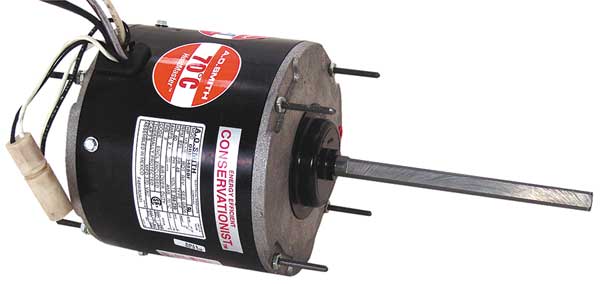

Condenser Fan Motor, 1/15to1/8HP, 1075 rpm

Condenser Fan Motor, 1/15to1/8HP, 1075 rpm

  • Century
  • Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 to 1/15 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, 0.80 Full Load Amps, 48 Frame, Output Watts 100 W, 60 Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud

    graingerSKU: 5DVX6, mscSKU: , zoro_no: G0728506, mongo_id: 65bbe7e49a749db822761b6e

Web Price
$194.99 / each
Qty

Product Details

5 5/8 in
5 1/8 in
2MDV4
Mexico
Continuous
Continuous
Belly Band, Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Thermally Protected
48
0.80
1/8 to 1/15
60
F
48 in
4 7/8 in
70 Degrees C
HVAC/R
Ball
Permanent Split Capacitor
Totally Enclosed Air-Over
Steel
All Angle
Stud
1
Double-Flat
CW/CCW
Condenser Fan
Auto
1 1/16 in
3 5/8 in x 3 5/8 in
1,075
1
100 W
11 3/8 in
1
Single
No
1,001-1,100
1/2 in
6 1/2 in
CSA, UL
4
#8-32
No
Yes
208-230V AC
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
11 lb
