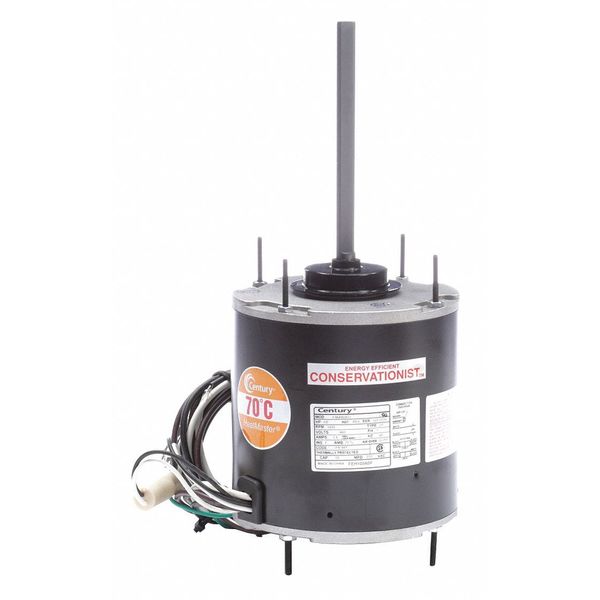

Condenser Fan Motor, 1/2 HP, 1075 rpm, 60Hz

SKU
Brand Century
Categories
Description Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 460V AC, 1.50 Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz, Replacement For Mfr. No. 3738HS, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
graingerSKU: 1UMG2, mscSKU: , zoro_no: G0456547, mongo_id: 65bbe9ba22d7a989a9971e9c

Web Price

$322.49 / each

Qty

Product Details

Body Dia. 5 5/8 in

Bolt Circle Dia. 5 1/8 in

Capacitor Required 2MDV7

Country of Origin (subject to change) India

Duty Continuous

Features Auto Protector, Energy Efficient

Frame 48

Full Load Amps 1.50

HP_ 1/2

Hz_ 60

Includes Belly Band

Ins. Class F

Lead Length 48 in

Length Less Shaft 6 1/2 in

Max. Ambient Temp. 70 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Totally Enclosed Air-Over

Motor Flange Type Non-Ventilated

Motor Frame Material Steel

Motor Mounting Position All Angle

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Double-Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Mounting Stud Length 1 1/8 in

Mounting Stud Pattern 3 5/8 in x 3 5/8 in

Nameplate RPM 1,075

No. of Speeds 1

Output Watts 370 W

Overall Length 13 in

Package Quantity 1

Phase Single

Removable Base Yes

Replacement For Mfr. No. 3738HS

RPM Range 1,001-1,100

Shaft Dia. 1/2 in

Shaft Length 6 1/2 in

Standards UL Recognized and CSA Certified

Stud Quantity 4

Stud Size #8-32

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 19 lb
