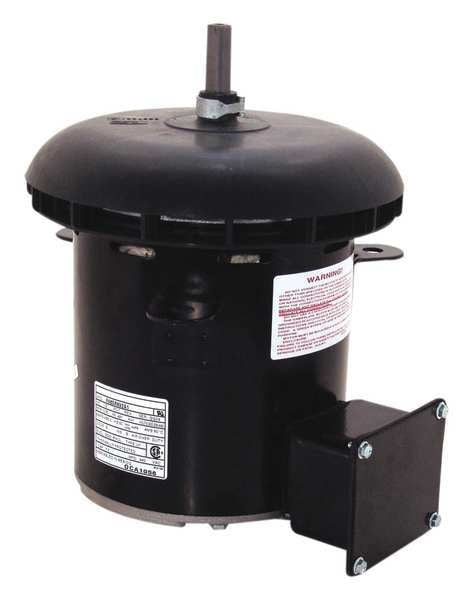

Condenser Fan Motor, 1/2 HP, 1075 rpm, 60Hz

SKU
Brand Century
Categories
Description Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 200-230/460V AC, Full Load Amps 4.6/2.3 A, 48Y Frame, OEM Replacement Brand Carrier/BDP, Replacement For 230, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Lug
graingerSKU: null, mscSKU: null, zoro_no: G2214852, mongo_id: 65bbe67d3aaddbd5a9032141

Web Price

$714.99 / each

Qty

Product Details

Application Carrier/BDP

Body Dia. 5.7 in

Bolt Circle Dia. 7 in

Capacitor Required 2MDY7

Country of Origin (subject to change) Mexico

Duty Continuous

Frame 48Y

Full Load Amps 4.6/2.3 A

HP_ 1/2

Hz_ 60

Ins. Class B

Lead Length 5 to 6

Length Less Shaft 8 3/16 in

Max. Ambient Temp. 60 Degrees C

Motor Application OEM Replacement

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Open Air-Over

Motor Frame Material Steel

Motor Mounting Position Vertical Shaft Down

Motor Mounting Type Lug

Motor Service Factor 1

Motor Shaft Design Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Nameplate RPM 1,075

No. of Speeds 1

Number of Shafts 1

OEM Replacement Brand Carrier/BDP

Overall Length 9 3/4 in

Package Quantity 1

Phase Single

Replacement For 230

Rotation CW/CCW

RPM Range 1,001-1,100

Shaft Dia. 1/2 in

Shaft Length 1 9/16 in

Standards CSA Certified, UL Recognized

Usable @ 200V Yes

Usable @ 208V Yes

Voltage 200-230/460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC, 208-230/460V AC, 208V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 21 lb
