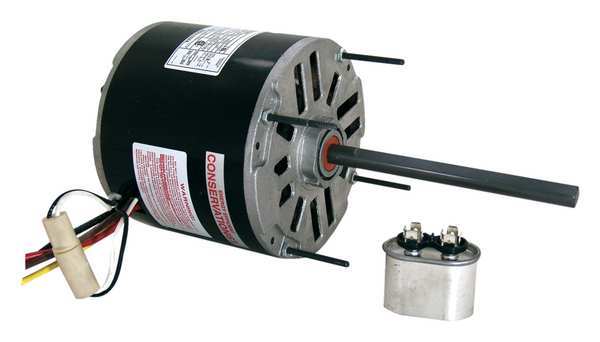

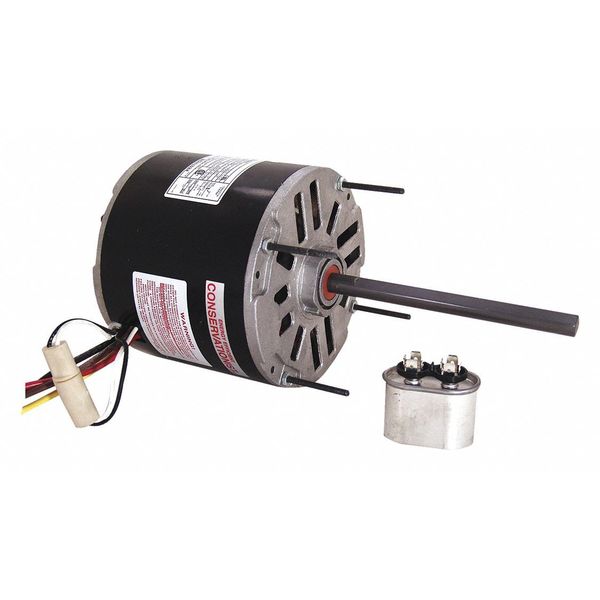

Condenser Fan Motor, 1/3 HP, 1075 rpm, 60Hz

SKU
Brand Century
Categories
Description Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 460V AC, 1.20 Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
graingerSKU: 4MB93, mscSKU: , zoro_no: G0875804, mongo_id: 65bbe65b3aaddbd5a9023c56

Web Price

$418.74 / each

Qty

Product Details

Body Dia. 5 5/8 in

Bolt Circle Dia. 5 3/16 in

Capacitor Required Included

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Features Extended Studs Shaft End, Hex Mounting Hub on Both Ends, Thermally Protected

Frame 48Y

Full Load Amps 1.20

HP_ 1/3

Hz_ 60

Ins. Class B

Lead Length 27 in

Length Less Shaft 5 1/2 in

Max. Ambient Temp. 60 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Open Air-Over

Motor Frame Material Steel

Motor Mounting Position All Angle

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Double-Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Mounting Stud Length 1 5/8 in

Mounting Stud Pattern 3 5/8 in x 3 5/8 in

Nameplate RPM 1,075

No. of Speeds 2

Nominal Efficiency 61 %

Output Watts 250 W

Overall Length 11 15/16 in

Package Quantity 1

Phase Single

Resilient Ring Dia. Not Applicable

RPM Range 1,001-1,100

Shaft Dia. 1/2 in

Shaft Length 6 7/16 in

Standards CSA Certified, UL Recognized

Stud Quantity 4

Stud Size #8-32

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 15 lb
