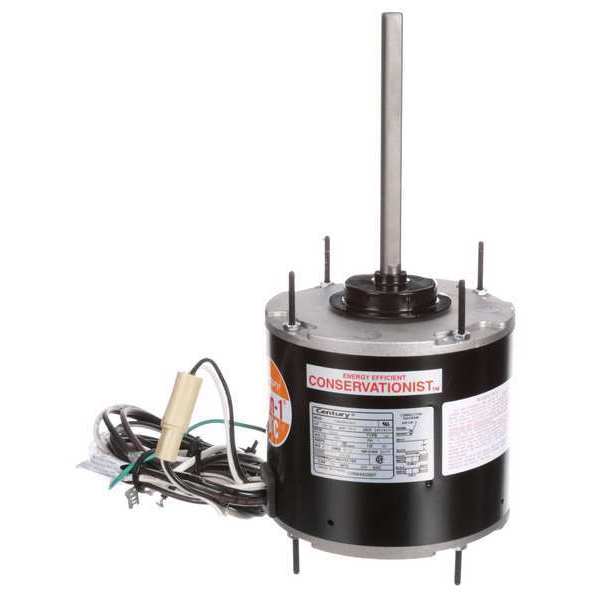

Condenser Fan Motor, 1/6to1/3HP, 1075 rpm

SKU
Brand Century
Categories
Description Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 to 1/6 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 460V AC, 1.20 Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz, Replacement For Mfr. No. 796A, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
graingerSKU: 5DVX7, mscSKU: , zoro_no: G1452193, mongo_id: 65bbe7949a749db822745073

Web Price

$323.74 / each

Qty

Product Details

Body Dia. 5 5/8 in

Bolt Circle Dia. 5 1/8 in

Capacitor Required 2MDV6

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Features Belly Band, Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Thermally Protected

Frame 48

Full Load Amps 1.20

HP_ 1/3 to 1/6

Hz_ 60

Ins. Class F

Lead Length 48 in

Length Less Shaft 5 3/4 in

Max. Ambient Temp. 70 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Steel

Motor Mounting Position All Angle

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Double-Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Mounting Stud Length 1 1/8 in

Mounting Stud Pattern 3 5/8 in x 3 5/8 in

Nameplate RPM 1,075

No. of Speeds 1

Output Watts 250 W

Overall Length 12 1/4 in

Package Quantity 1

Phase Single

Promotion Restriction Not eligible for promotion

Removable Base No

Replacement For Mfr. No. 796A

RPM Range 1,001-1,100

Shaft Dia. 1/2 in

Shaft Length 6 1/2 in

Standards CSA, UL

Stud Quantity 4

Stud Size #8-32

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 13 lb
