Home / Evaporative Cooler Motor, 1-1/2 In. L

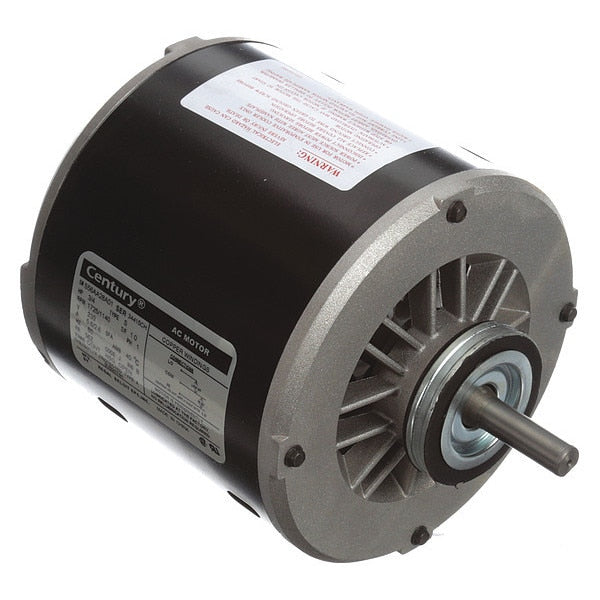

Evaporative Cooler Motor, 1-1/2 In. L

SKU
Brand Century
Categories
Description Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 3/4, 1/4 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 230V AC, 5.6/2.8 Full Load Amps, 56Z Frame, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Ring, Motor Mounting Position All Angle, Shaft Length 1 1/2 in, Shaft Dia. 1/2 in
graingerSKU: 2HTL5, mscSKU: , zoro_no: G1716145, mongo_id: 65bbe9ba22d7a989a9971e94

Web Price

$323.74 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Country of Origin (subject to change) China

Features Moisture Resistant

Finish Varnish

Frame 56Z

Full Load Amps 5.6/2.8

HP_ 3/4, 1/4

Hz_ 60

Includes Hardware, Switch Parts

Ins. Class B

Length Less Shaft 7 15/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Split-Phase

Motor Enclosure Design Open Dripproof

Motor Mounting Position All Angle

Motor Mounting Type Ring

Motor Service Factor 1

Motor Shaft Rotation CCWLE

Motor Sub Application Evaporator Cooler

Motor Thermal Protection Auto

Nameplate RPM 1,725/1,140

No. of Speeds 2

Overall Length 9 7/16 in

Package Quantity 1

Phase Single

Resilient Ring Dia. 2 1/2 in

Ring Dia. 2 1/2 in

Ring to Ring Center 7 7/16 in

RPM Range 1,701-1,800

Shaft Dia. 1/2 in

Shaft Length 1 1/2 in

Standards CSA, UL

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
