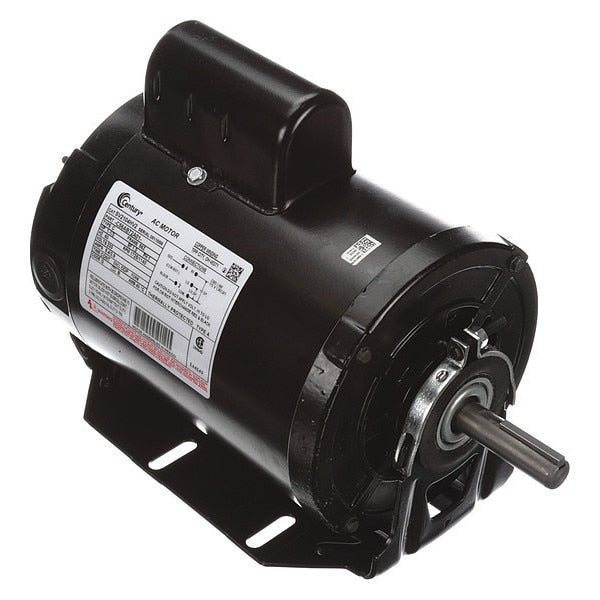

Evaporative Cooler Motor, 230V, Sleeve

SKU
Brand Century
Categories
Description Evaporative Cooler Motor, Single Phase, Motor Design Capacitor-Start, 1 1/3 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 230V AC, 6.4/3.9 Full Load Amps, 56Z Frame, Output Watts 750 W, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Cradle Base, Motor Frame Material Steel
graingerSKU: 6FJF4, mscSKU: , zoro_no: G0528315, mongo_id: 65bbe80e22d7a989a98d3fd0

Web Price

$501.24 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Body Dia. 6 1/2 in

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Features Auto Protector, Brass Current Carrying, Continuous Filtration of Oil, Dust Caps and Terminal Board Cover, Electro Zin Encapsulating Varnish, Electro Zinc Plated Governor Parts, Heavy Magnet Wire Insulation, Moisture Resistant Terminal Board

Frame 56Z

Full Load Amps 6.4/3.9

HP_ 1 1/3

Hz_ 60

Ins. Class B

Length Less Shaft 9 15/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Sleeve

Motor Design Capacitor-Start

Motor Enclosure Design Open

Motor Frame Material Steel

Motor Mounting Position All Angle

Motor Mounting Type Cradle Base

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Evaporator Cooler

Motor Thermal Protection Auto

Nameplate RPM 1,725/1,140

No. of Speeds 2

Output Watts 750 W

Overall Length 12 1/16 in

Package Quantity 1

Phase Single

Resilient Ring Dia. 2 1/2 in

Ring Dia. 2 1/2 in

Ring to Ring Center 7 1/2 in

RPM Range 1,701-1,800

Shaft Dia. 5/8 in

Shaft Length 2 1/8 in

Standards CSA

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 33 lb
