Home / Farm Duty Motor, Shaded Pole, 2 HP, 230V AC, 1,725 Nameplate RPM, 56HZ Frame

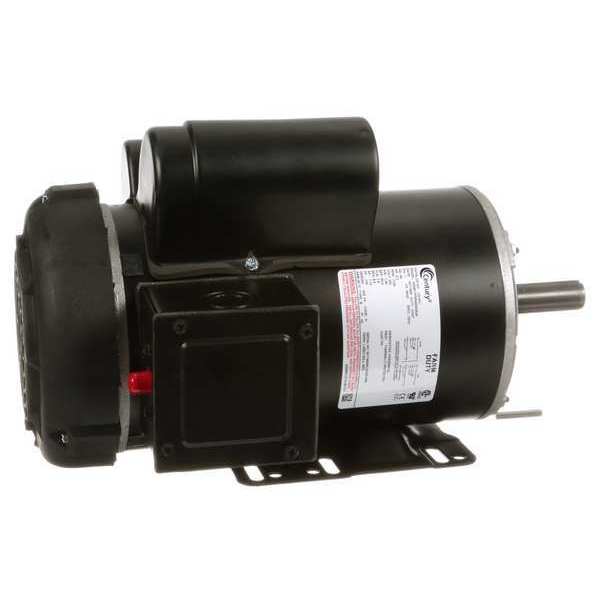

Farm Duty Motor, Shaded Pole, 2 HP, 230V AC, 1,725 Nameplate RPM, 56HZ Frame

SKU
Brand Century
Categories
Description Farm Duty Motor, Single Phase, Motor Design Shaded Pole, 2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 7.8 A, 56HZ Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Frame Material Rolled Steel, Shaft Dia. 7/8 in

Web Price

$672.49 / each

Qty

Product Details

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 56HZ

Full Load Amps 7.8 A

HP_ 2

Hz_ 60 Hz

Ins. Class F

Item - Farm Duty Motors General Purpose Farm Duty Motor

Length Less Shaft 13 3/8 in

Max. Ambient Temp. 104 Degrees F

Motor Application Farm Duty

Motor Bearings Ball

Motor Design Shaded Pole

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Rolled Steel

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CCWSE

Motor Sub Application Condensate Drain

Motor Thermal Protection Manual

Nameplate RPM 1,725

No. of Speeds 1

Overall Length 15 5/8 in

Package Quantity 1

Phase Single

RPM Range 1,701-1,800

Shaft Dia. 7/8 in

Shaft Length 2 1/4 in

Standards CE Certified, CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 48 lb
