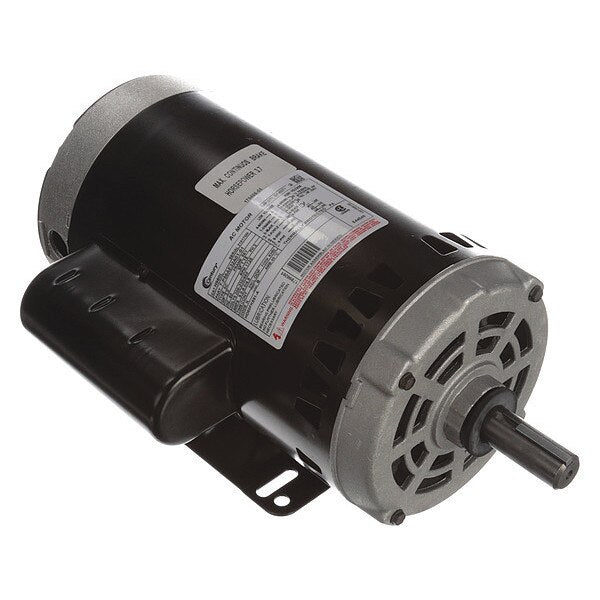

Home / Motor, 3 HP, OEM Replacement Brand: Carrier/BDP Replacement For: 176500

Motor, 3 HP, OEM Replacement Brand: Carrier/BDP Replacement For: 176500

SKU
Brand Century
Categories
Description Belt Drive Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 9.0-9.0/4.5 A, 56Y Frame, OEM Replacement Brand Carrier/BDP, Replacement For 182779, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Rigid Base
graingerSKU: 45GM04, mscSKU: , zoro_no: G2033599, mongo_id: 65bbe83a22d7a989a98e268c

Web Price

$1,086.24 / each

Qty

Product Details

Application Fans and Blowers

Body Dia. 6-1/2

Capacitor Required No

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 56YZ

Full Load Amps 10.6/4.8A

HP_ 3 HP

Hz_ 60 Hz

Ins. Class B

Length Less Shaft 12 7/8 in

Manufacturers Warranty Length 1 yr.

Max. Ambient Temp. 40 Degrees C

Motor Application OEM Replacement

Motor Bearings Ball

Motor Design Polyphase, Induction Type, Single Or Dual Voltage

Motor Enclosure Design Open Drip Proof

Motor Frame Material Steel

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation Reversible

Motor Sub Application Belt Drive Fan/Blower

Motor Thermal Protection Automatic

Nameplate RPM 1725 rpm

No. of Speeds 1

Number of Shafts 1

OEM Replacement Brand Carrier/BDP

Overall Length 15-3/16

Package Quantity 1

Phase 3

Replacement For 176500

RPM Range 1701-1800

Shaft Dia. 7/8

Shaft Length 2.31

Standards UL Recognized, CSA Certified

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 45 lb
