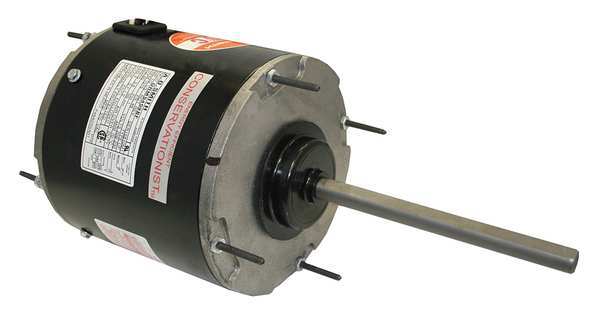

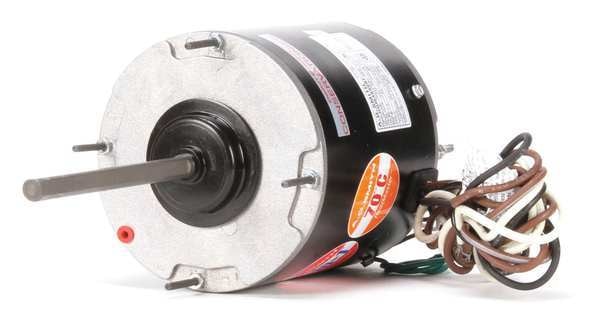

Motor, PSC, 1/2 HP, 1075 RPM, 460V, 48Y, TEAO

SKU
Brand Century
Categories
Description Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 to 1/5 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 460V AC, Full Load Amps 1.05 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class F, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 70 Degrees C, Duty Cycle Continuous, Lead Length 48 in, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Stud, Motor Mounting Position All Angle
graingerSKU: 16A116, mscSKU: , zoro_no: G4485695, mongo_id: 65bbe6393aaddbd5a901568f

Web Price

$417.49 / each

Product Details

Application Blowers, Fans and Air Circulators

Body Dia. 5 5/8 in

Bolt Circle Dia. 5 1/8 in

Capacitor Required 2MDV7

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 48Y

Full Load Amps 1.05 A

HP_ 1/2 to 1/5

Hz_ 60 Hz

Includes Reversing Plug

Ins. Class F

Lead Length 48 in

Length Less Shaft 5 3/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 70 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Totally Enclosed

Motor Frame Material Steel

Motor Mounting Position All Angle

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Double-Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Mounting Stud

Mounting Holes 4

Mounting Stud Length 7/8 in, 1 1/8 in

Mounting Stud Location Both Ends

Mounting Stud Pattern 3-5/8 in x 3-5/8 in

Nameplate RPM 1,075

No. of Speeds 1

Number of Shafts 1

Number of Speeds 1

Overall Length 13 in

Package Quantity 1

Phase Single

RPM Range 1,001-1,100

Shaft Dia. 1/2 in

Shaft Length 6 1/2 in

Standards CSA Certified, UL Recognized

Stud Quantity 4

Stud Size #8-32

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 19 lb
