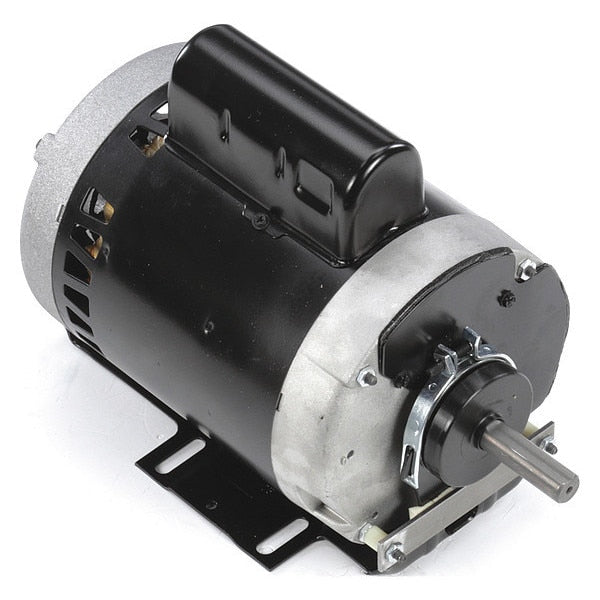

Home / OEM Replace Motor, 3/4 HP, 1075 rpm, TEAO

OEM Replace Motor, 3/4 HP, 1075 rpm, TEAO

SKU
Brand Century
Categories
Description Direct Drive Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.3 to 4.2/2.1 A, 56Y Frame, OEM Replacement Brand Kramer Trenton, Replacement For 047-099, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over
graingerSKU: 45GL98, mscSKU: , zoro_no: G2033641, mongo_id: 65bbe7753aaddbd5a9096497

Web Price

$749.99 / each

Qty

Product Details

Application Fans and Blowers

Body Dia. 6.5 in

Capacitor Required No

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Extended Thru-Bolts No

Frame 56Y

Full Load Amps 4.3 to 4.2/2.1 A

HP_ 3/4

Hz_ 60

Ins. Class B

Length Less Shaft 10 1/4 in

Max. Ambient Temp. 40 Degrees C

Motor Application OEM Replacement

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Open Air-Over

Motor Frame Material Steel

Motor Mounting Type Cradle Base

Motor Service Factor 1

Motor Shaft Design Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Direct Drive Fan/Blower

Motor Thermal Protection Auto

Mounting Stud Length Not Applicable

Nameplate RPM 1,075

No. of Speeds 1

Number of Shafts 1

OEM Replacement Brand Kramer Trenton

Overall Length 12 13/16 in

Package Quantity 1

Phase Single

Replacement For 047-099

RPM Range 1,001-1,100

Shaft Dia. 5/8 in

Shaft Length 2 5/16 in

Standards CSA, UL

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 32 lb
